In the ever-evolving world of modern manufacturing, the push for greater precision, efficiency, and complexity in part design has driven remarkable advances in CNC (Computer Numerical Control) machining. While 3-axis machining remains the bedrock of the industry, its limitations become apparent when dealing with intricate geometries. Enter 4 Axis Machining – a transformative technology that bridges the gap between basic milling and full five-axis freedom. By introducing a rotational axis, 4 axis machining unlocks new levels of productivity and capability, making it an indispensable tool for industries ranging from aerospace to medical device manufacturing.

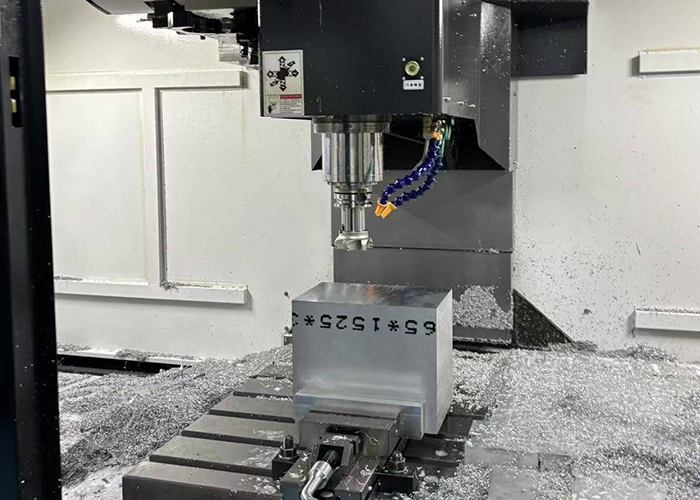

Understanding the Fourth Axis
To fully grasp the power of 4-axis machining, it’s helpful to first understand its predecessor. Traditional 3-axis machining operates along three linear axes: X (left-right), Y (front-back), and Z (up-down). The cutting tool approaches the workpiece from a fixed, vertical orientation. While this works perfectly for flat or simply contoured parts, it falls short when features exist on multiple sides of a component. For example, machining a series of holes around a cylindrical part would require multiple, time-consuming setups, each with its own manual realignment.
4 axis machining adds a rotational axis, typically designated as the A-axis (rotating around the X-axis). This fourth axis is most commonly implemented via a rotary table integrated into the CNC machine bed. The workpiece is clamped onto this rotary table, which can index (rotate to a precise angle and stop) or continuously rotate during machining. While some configurations employ a B‑axis (rotation about the Y‑axis), the industry standard is the A‑axis. This simple yet powerful addition allows the machine to present different faces of the workpiece to the cutting tool without manual intervention.
Types of 4 Axis Machining Operations
There are two primary modes of operation in 4 axis machining:
- Positional (or Indexed) 4 Axis Machining: Here, the rotary axis moves to a specific angular position, stops, and then the machine performs standard 3-axis cutting. Once complete, the part rotates to the next required angle, and the process repeats. This is ideal for parts with features on multiple sides, such as a square block requiring precise holes on all four faces. The key benefit is dramatic reduction in setup time and human error.
- Simultaneous (or Continuous) 4 Axis Machining: In this more advanced mode, the rotary axis moves while the cutting tool is engaged. This allows for the machining of complex, contoured surfaces that cannot be created with positional indexing alone. Classic examples include cutting helical flutes on a drill bit, machining cam lobes, or producing spiral gears. Simultaneous 4 axis machining enables the creation of organic, curved geometries that would otherwise require a much more expensive 5-axis machine.
Key Advantages Over 3 Axis Machining
The shift from 3 to 4 axes offers several compelling benefits:
- Reduced Setup Times: This is arguably the most direct benefit. A part that would require two, three, or even four separate setups on a 3-axis machine can often be completed in a single setup on a 4-axis machine. Less time spent unclamping, reclamping, and re-indicating the part translates directly to lower labor costs and faster turnaround.
- Improved Accuracy: Every time a workpiece is unclamped and moved to a new setup, there is a risk of misalignment. Small errors creep in: a fixture is not perfectly square, a vise is slightly off. By eliminating multiple setups, 4 axis machining eliminates cumulative positioning errors, resulting in tighter tolerances and better part-to-part consistency.
- Enhanced Geometric Complexity: Parts with angled features, undercuts, or cylindrical geometries become straightforward. For example, drilling holes at precisely 45-degree intervals around a part’s circumference is a simple indexing task on a 4-axis machine but a challenge on a 3-axis machine requiring sine plates or custom fixtures.
- Better Tool Access and Shorter Tools: Since the part can rotate, the cutter can often access features from a better angle. This can allow the use of shorter, stiffer cutting tools, reducing chatter and improving surface finish. It also eliminates the need for expensive custom angle heads or long reach endmills.
- Cutting Cycle Time Reduction: In simultaneous operations, the combination of linear and rotary motions often allows for faster toolpath strategies. For instance, a continuous rotary motion can replace a series of back-and-forth linear passes, reducing overall cutting time.
Limitations and Comparison to 5 Axis Machining
While powerful, 4 axis machining is not the ultimate solution for every job. Its primary limitation is that the tool axis is fixed. The cutting tool always remains vertical (or horizontal in a 4-axis horizontal machine). This means that while the part can rotate, the cutter cannot tilt. For parts with severely overhanging features, deep cavities with drafted walls, or complex freeform surfaces like turbine blades and impellers, 5 axis machining is required. A 5-axis machine adds a second rotational axis (typically tilting the spindle or the table), allowing the tool to approach the part from virtually any direction.
However, 5 axis machines are significantly more expensive to purchase, maintain, and program. They require advanced CAM software and highly skilled operators. For the vast majority of prismatic parts – hydraulic manifolds, medical bone plates, automotive brackets, and many die/mold components – 4 axis machining provides 90% of the capability at a fraction of the cost and complexity.
Real-World Applications
The versatility of 4 axis machining makes it popular across many sectors:
- Aerospace: Machining engine mounts, structural brackets, and fuel system components that have precise hole patterns on multiple faces.
- Medical: Creating orthopedic bone screws, spinal implants, and surgical instrument handles – many of which have helical threads and complex curved surfaces.
- Automotive: Producing turbocharger housings, custom gear blanks, and cylinder heads for high-performance engines.
- General Engineering: Milling cam profiles, machining complex manifolds, and producing submersible pump components.
Conclusion
4 Axis Machining represents a sweet spot in the CNC world. It is a mature, reliable, and cost-effective technology that solves the most common problem facing machinists: the need to machine multiple faces of a part without constant manual intervention. By reducing setups, improving accuracy, and enabling more complex geometries, it bridges the gap between simple 3-axis milling and expensive, complex 5-axis systems. For any machine shop looking to expand its capabilities without breaking the bank, investing in 4-axis technology is a strategic move that delivers immediate returns in both productivity and part quality. It is not just the next axis; it is the smart axis
