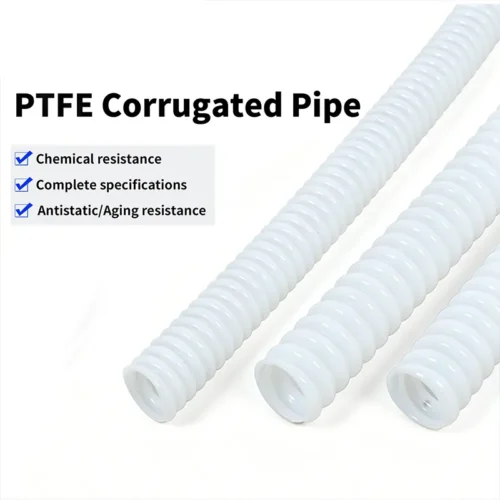

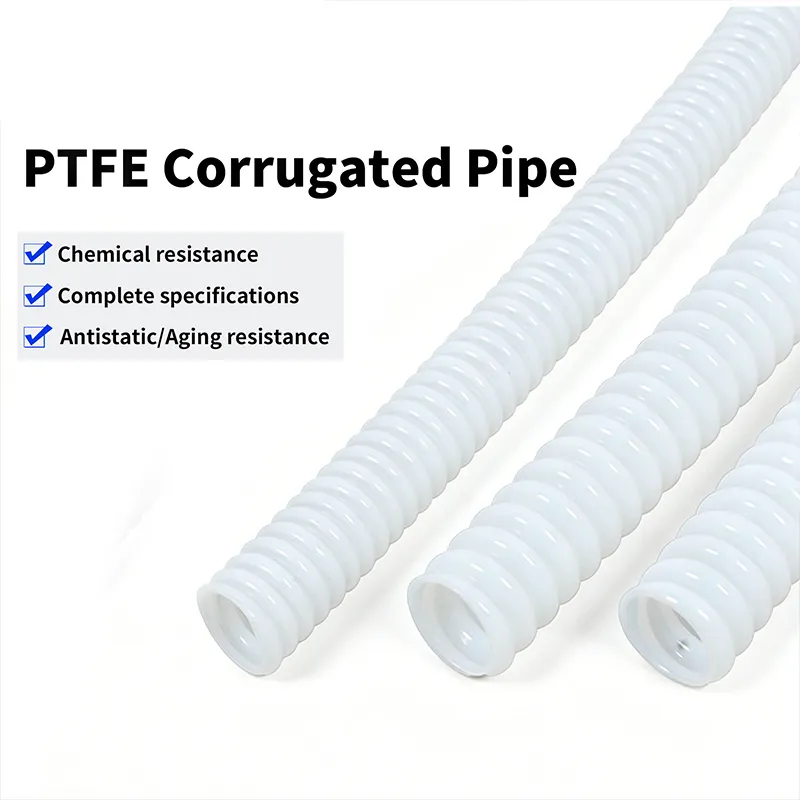

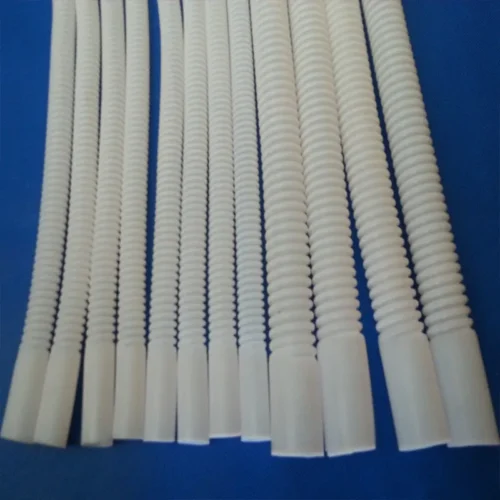

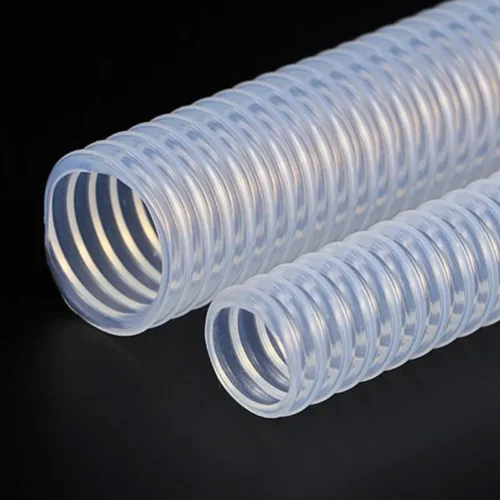

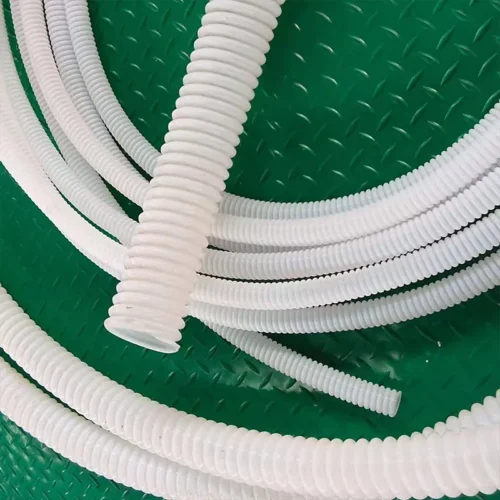

Tubo flessibile non intrecciato in PTFE, corrugato, senza rivestimento, resistente agli agenti chimici
US$5.33
Short Description：
bare ptfe corrugated hose without steel braid. Virgin PTFE. Wall thickness 1.0‑4.0mm, DN8‑DN100. Chemical resistant, anti‑aging, antistatic. Low‑pressure use for chemical ventilation & transfer. Custom length and fittings.
Full Description：
Specifications
‑ Material: 100% Virgin PTFE
‑ Wall thickness:1.0mm,1.5mm,2.0mm,2.5mm,3.0mm,4.0mm
‑ Inner diameter: DN8,DN10,DN12,DN16,DN20,DN25,DN32,DN40,DN50,DN65,DN80,DN100
‑ Temperature:‑60℃ ~ +260℃
‑ Length: Custom cut
‑ Note: Only for low‑pressure, not for high‑pressure working condition.
Features
Chemical resistance, complete specifications, antistatic, aging resistance.
Application
Chemical ventilation, material conveying, laboratory & anti‑corrosion pipeline.
End fittings
Clamp / flange / thread fittings available.
Richiedi un preventivo
Inserisci la quantità desiderata e aggiungi il prodotto alla tua lista di preventivi per richiedere un'offerta.
Specifications
Descrizione
This non‑reinforced corrugated PTFE hose features outstanding corrosion resistance against most acids and solvents. Designed for low‑pressure exhaust and medium conveying scenarios. Support custom processing on dimension according to actual working requirements.
FAQ
Q: Can this PTFE corrugated bare hose be used for high‑pressure working conditions?
A: No, this non‑reinforced bare hose is only suitable for low‑pressure ventilation and medium transfer, not for high‑pressure applications.
Q: What temperature range can this hose withstand?
A: Working temperature ranges from ‑60℃ to +260℃.
Q: Can I get custom sizes and end fittings?
A: Yes, custom length, wall thickness and connection fittings are supported according to your requirements.
