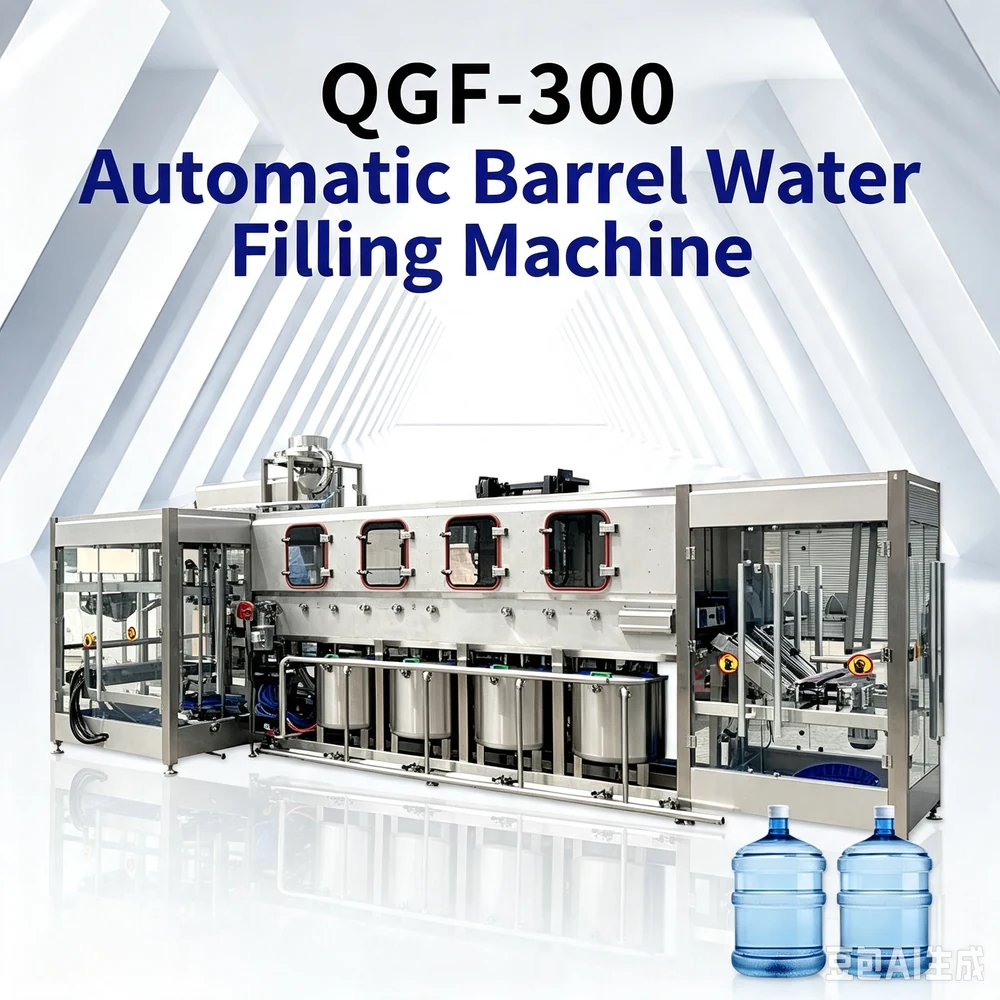

Automatic 5 Gallon Water Filling Machine for Bottled Water
Automatic linear 5 gallon water filling machine combining bottle rinsing, filling and cap sealing for purified water and mineral water production.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Details
Product Introduction

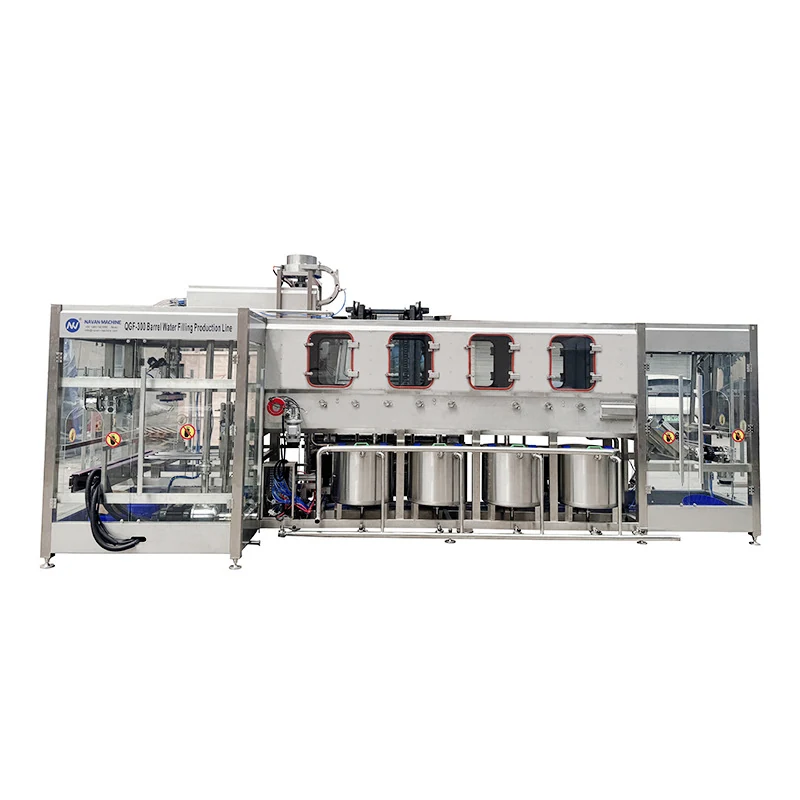

Automatic linear 5 gallon water filling machine combining bottle rinsing, filling and cap sealing for purified water and mineral water production. It is designed for small and medium drinking-water plants that require stable, automated handling of 10-20 L barrels.
Features
- Integrated rinsing, filling and cap-sealing workflow.
- Linear machine layout with two filling heads.
- Automatic control system for stable operation and consistent filling.
- Compact footprint to support efficient water-plant layouts.
- Suitable for purified water, mineral water and spring water.
Technical Parameters
| Model | QGF-300 |
| Output | 250-300 barrels/hour |
| Filling heads | 2 |
| Machine type | Linear |
| Applicable barrel volume | 10-20 L |
| Applicable barrel size | 270 × 490 mm |
| Air pressure | 0.4-0.6 MPa |
| Air consumption | 0.5 m³/min |
| Total power | 3.5 kW |
| Machine size | 3900 × 1500 × 1700 mm |
| Machine weight | 1500 kg |
Applications
For purified water, mineral water and spring water supplied in 5 gallon or other 10-20 L returnable barrels.
Product Gallery
FAQ
Can this machine fill 5 gallon water barrels?
Yes. It is designed for 10-20 L barrels, including common 5 gallon drinking-water bottles.
What information is needed for selection?
Please provide barrel dimensions, cap type, water source, required output and available plant layout.
Related Products
Request A Quote
Please send your barrel sample, cap sample, target output and layout requirements for a suitable 5 gallon water filling configuration.
