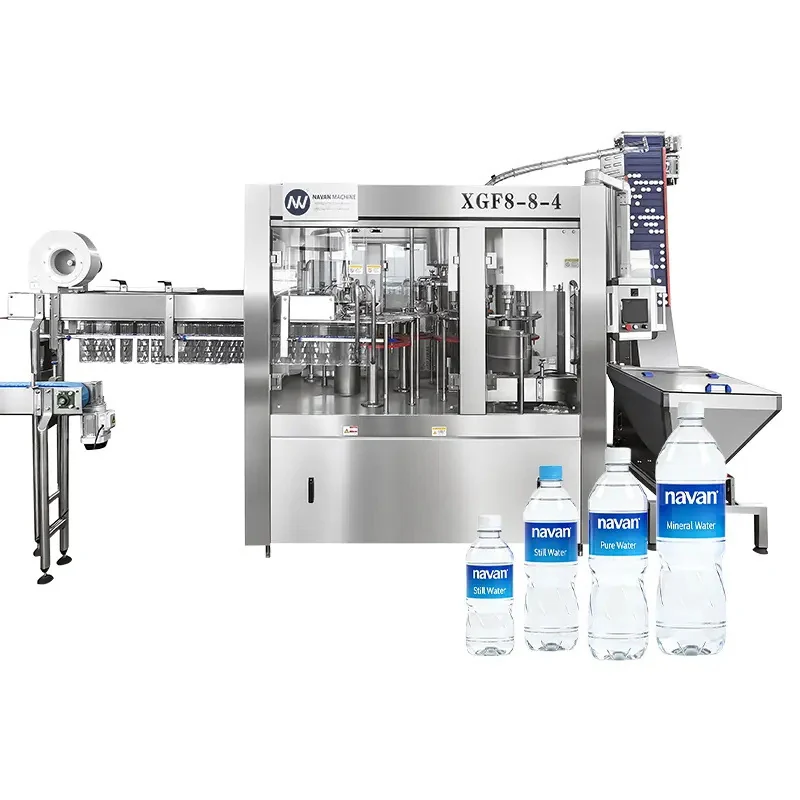

Automatic PET Bottle Water Filling Line for Drinking Water
Automatic PET bottle water filling line combining bottle rinsing, filling and capping for purified water, mineral water and other non-carbonated beverages.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Details
Product Introduction
Automatic PET bottle water filling line combining bottle rinsing, filling and capping for purified water, mineral water and other non-carbonated beverages. Its compact rinse-fill-cap configuration is designed for small and medium beverage producers using PET bottles.
Features
- Integrated rinsing, filling and capping for PET bottles.
- Suitable for purified water, mineral water, RO water and distilled water.
- Also suitable for tea drinks and other non-carbonated beverages.
- Food-grade SUS304 stainless-steel construction for product-contact areas.
- Compact machine footprint helps reduce operating space and labor requirements.
Technical Parameters
| Model | XGF 8-8-4 |
| Output (500 ml) | 2500–3000 bottles/hour |
| Applicable bottle volume | 100–2500 ml |
| Bottle diameter range | 50–115 mm |
| Bottle height range | 150–350 mm |
| Cap type | Plastic screw cap, 20–50 mm diameter |
| Main motor power | 1.9 kW |
| Power supply | 220–480 V, three phase, 50/60 Hz |
| Machine size | 1900 × 1420 × 2000 mm |
| Machine weight | 1500 kg |
Applications
For PET bottled purified water, mineral water, RO water, distilled water, tea drinks and other non-carbonated beverages.

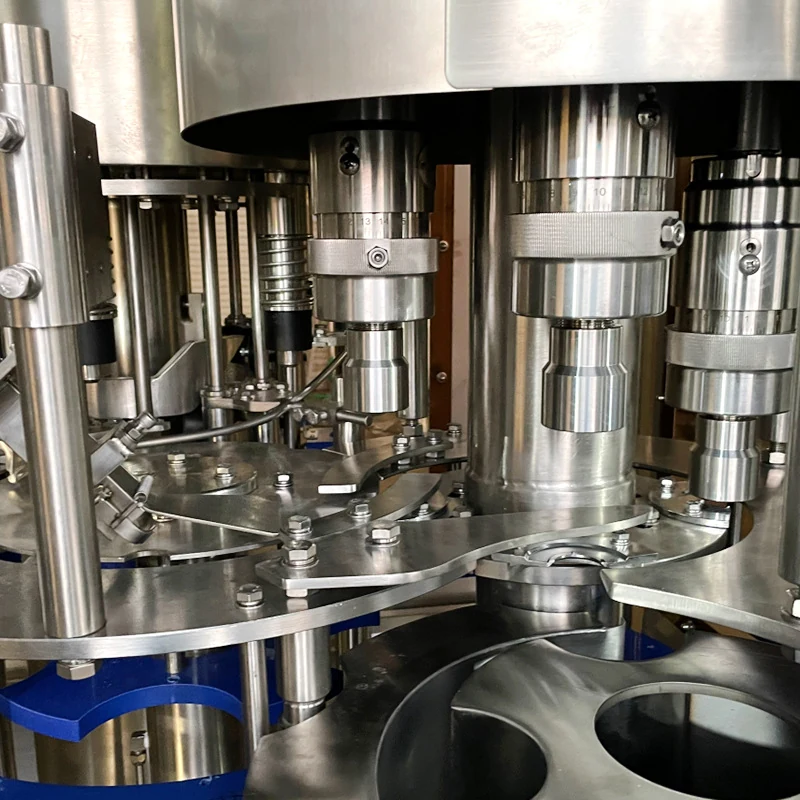

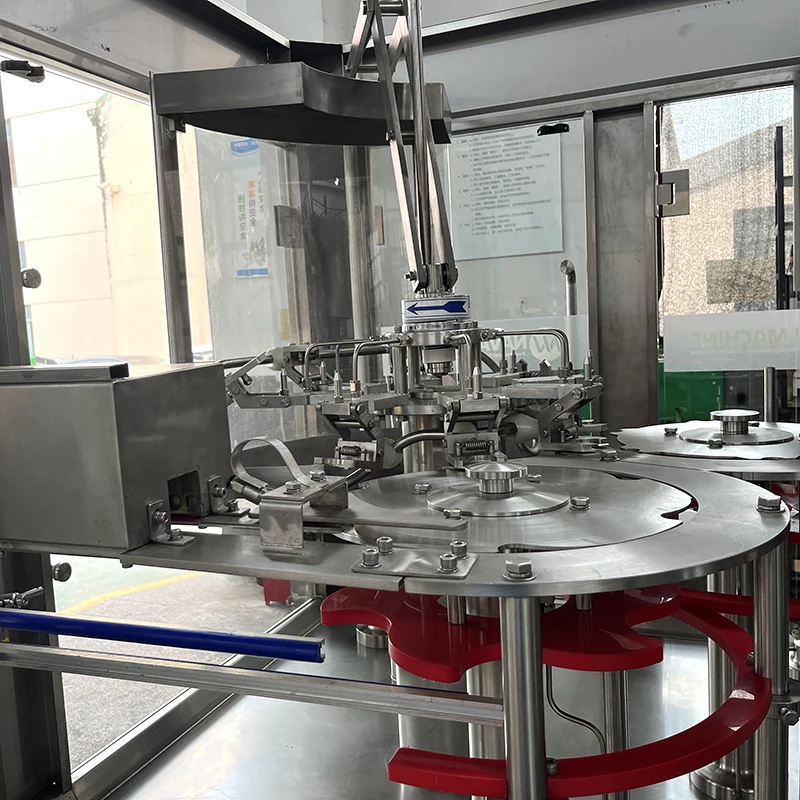

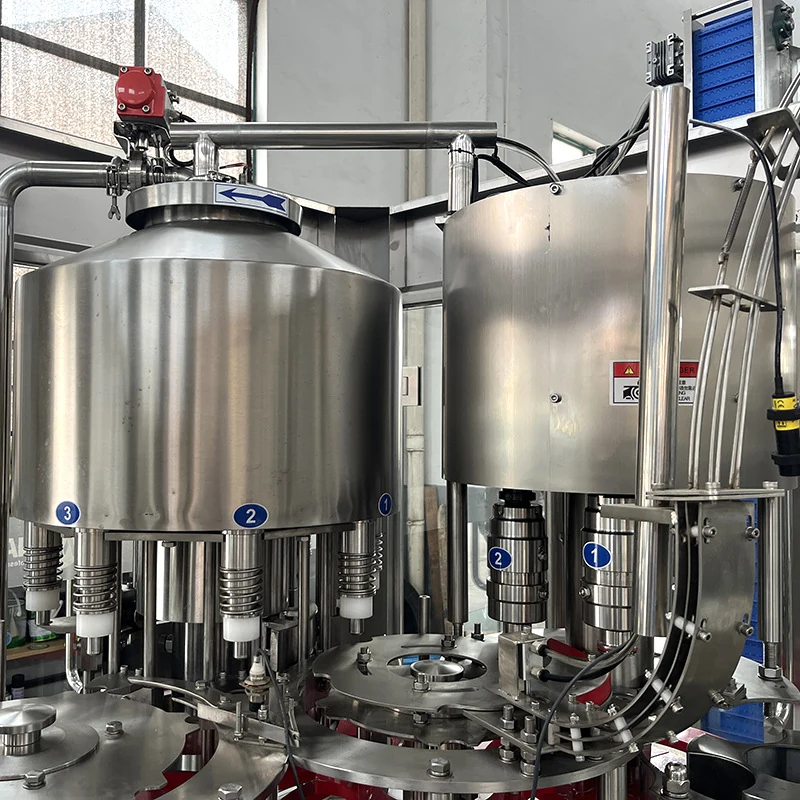

Product Gallery
FAQ
Can the line handle different PET bottle sizes?
Yes. It supports a bottle volume range from 100 to 2500 ml within the stated diameter and height ranges.
Which cap type is suitable?
The machine is configured for plastic screw caps with a 20–50 mm diameter range.
Related Products
Request A Quote
Please send your PET bottle, cap sample, beverage type and target output for a suitable bottled-water line proposal.
