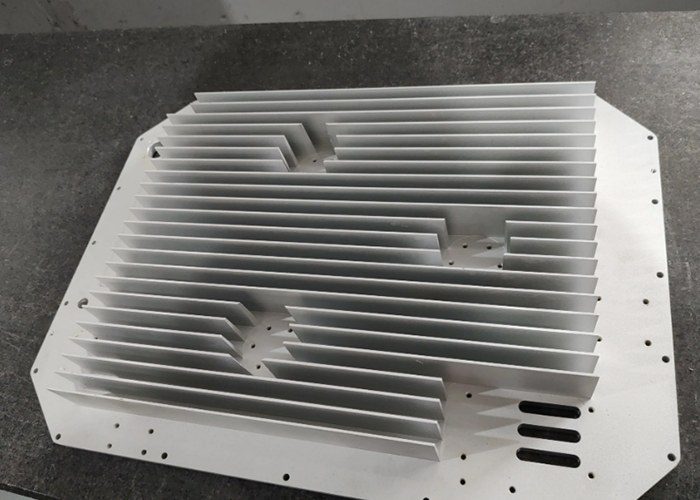

Why Aluminium is the Material of Choice for CNC Machining

Aluminium alloys have become the default material for a vast range of CNC machined parts, and for good reason. The metal offers an exceptional strength-to-weight ratio, with a density roughly one-third that of steel, making it indispensable in industries where weight reduction directly translates to performance gains. Beyond weight, aluminium’s machinability is a major advantage: it can be cut three to four times faster than steel and five to seven times faster than titanium, directly reducing machine time and, consequently, production costs.

The material’s excellent thermal and electrical conductivity also opens doors for applications requiring heat dissipation or electromagnetic shielding. For manufacturers, aluminium’s lower cutting forces and reduced tool wear mean simpler fixturing and longer tool life, further contributing to cost-effective production even when raw material prices fluctuate.

The two most commonly machined alloys are 6061-T6 and 7075-T6. 6061-T6 is the workhorse, offering an excellent balance of cost, machinability, and corrosion resistance for general-purpose parts, brackets, and housings. 7075-T6, often referred to as aircraft-grade aluminium, provides significantly higher strength but at the cost of increased tool wear and slower machining speeds—typically 15 to 25 percent more expensive to process. It is reserved for demanding structural applications in aerospace and high-performance automotive components.

The Technical Landscape of CNC Machining in China

Chinese CNC machining suppliers have invested heavily in advanced equipment to compete on a global scale. Five-axis CNC machining centers, for instance, are now widely available and allow for the precise production of complex geometries with fine features that would be impossible or require multiple setups on three-axis machines. This capability is particularly valuable for parts with contoured surfaces, deep pockets, or features on multiple faces.

Typical machining tolerances achievable by reputable Chinese factories are around ±0.02mm, suitable for the vast majority of precision mechanical components. Surface finishes can reach Ra0.6, and specialised processes like ultra-thin wall machining are available for parts requiring minimal material thickness. The infrastructure for secondary operations is also robust: anodising, electroplating, zinc plating, chrome plating, and powder coating are standard offerings, allowing for complete finished parts rather than just raw machined components.

Quality assurance systems have matured considerably. ISO 9001:2015 certification is common among established suppliers, and factories employ coordinate measuring machines, optical comparators, and hardness testers to verify dimensional accuracy and material properties. Many suppliers provide inspection reports and material certifications with shipments, offering a level of traceability that was less common in previous decades.

Cost Dynamics: What Drives the Price of Aluminium CNC Machining

Understanding the cost structure of aluminium CNC machining in China helps buyers make informed decisions and identify opportunities for savings. Machining time typically represents the largest portion of total cost, accounting for 50 to 70 percent of the final price. Machine hourly rates in China generally range from $30 to $150, though this varies based on machine complexity and geographic location.

Part complexity is perhaps the most significant cost driver under a buyer’s control. Features like deep pockets, sharp internal corners, and unnecessarily tight tolerances can increase machining time by two to four times compared to a simpler design. Applying tight tolerances only to the 20 to 30 percent of features that genuinely require them, rather than across the entire part, can reduce total cost substantially without compromising functionality.

Production volume dramatically alters unit economics. For prototypes, setup and programming costs can dominate, often comprising 60 to 80 percent of the total cost of a single part. Once volumes exceed 100 units, setup costs typically drop below 10 percent per unit, and bulk material purchasing and optimised toolpaths further reduce per-part pricing. This makes China particularly attractive for low-to-medium volume production runs where the setup cost burden would be prohibitive in higher-cost manufacturing regions.

Material selection also plays a role. While aluminium is generally more cost-effective to machine than most metals, the specific alloy matters. 6061-T6 offers the best balance of cost and performance for most applications, while specifying 7075-T6 when not strictly necessary adds both material and machining cost.

Applications and Industries Served

Chinese aluminium CNC machining suppliers serve a diverse range of industries, each with its own quality and documentation requirements. In aerospace, lightweight structural components and system assemblies are produced from 6061 and 7075 alloys, often requiring material traceability and dimensional inspection reports. The automotive sector sources high-performance engine and chassis parts, as well as components for electric vehicle battery enclosures and thermal management systems.

Medical device manufacturers rely on Chinese CNC shops for precision surgical instruments and device components, where surface finish and biocompatibility considerations are paramount. Industrial automation and robotics companies source structural brackets, end-effectors, and custom fixtures. The common thread across these applications is the need for repeatable precision and documented quality—requirements that established Chinese suppliers are well-equipped to meet.

Navigating the Sourcing Process

For buyers new to sourcing from China, a few practical considerations can smooth the process. First, distinguish between trading companies and actual factories. While trading companies can be legitimate partners, direct factory relationships often provide better communication on technical issues and more competitive pricing for ongoing production. Suppliers that openly share their factory locations and equipment lists—such as five-axis machining centers, grinders, and wire cutting machines—provide greater transparency.

When requesting quotations, providing complete technical drawings in standard formats (STEP, IGS, DWG, or PDF) with clear tolerance specifications and material grades will yield faster and more accurate responses. For first-time orders, requesting a prototype or small batch before committing to volume production is a prudent risk-mitigation strategy.

Finally, consider the total landed cost rather than just the unit price. Shipping terms, packaging standards, and any applicable tariffs or duties all contribute to the final cost of parts delivered to your facility. Established suppliers are familiar with international shipping logistics and can provide standard export packaging designed to protect precision machined surfaces during transit.

Conclusion

CNC machining aluminium in China represents a mature and highly capable manufacturing ecosystem. The combination of advanced multi-axis machining equipment, experienced technical teams, competitive labour and overhead costs, and a deep supply chain for aluminium alloys and surface treatments creates a compelling proposition for global buyers. For applications ranging from prototypes to production volumes, Chinese suppliers offer the precision, documentation, and cost efficiency required to compete in today’s global marketplace. By understanding the cost drivers, material options, and sourcing best practices, engineers and procurement professionals can leverage this ecosystem to bring high-quality aluminium components to market faster and more economically.

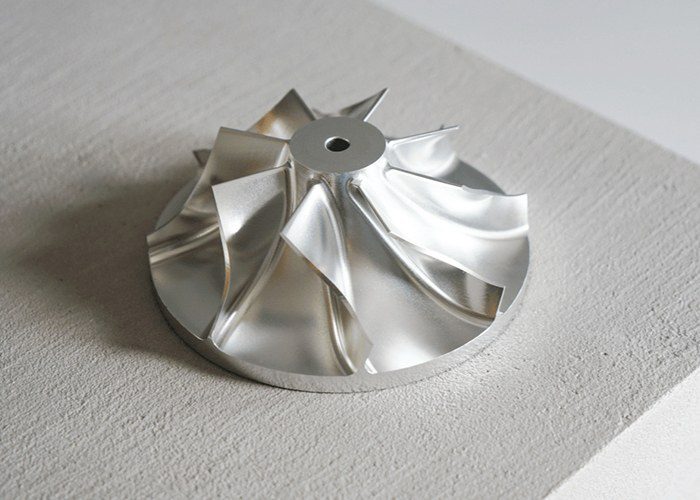

Why Aerospace Demands More from CNC Machining

Aerospace components are not like commercial parts. They operate in environments of extreme temperature variation, constant vibration, and fatigue-inducing stress cycles. A single defective bracket can ground a fleet or delay a launch . This consequence of failure drives every aspect of aerospace CNC machining, from material selection to inspection protocols.

The materials themselves present formidable challenges. Aluminum alloys like 7075 and 2024 are favored for structural brackets and airframe components due to their high strength-to-weight ratio . Titanium alloys, particularly Ti-6Al-4V, dominate engine mounts and critical structural applications where corrosion resistance and strength at elevated temperatures are essential . For the hottest sections of turbine engines, nickel-based superalloys such as Inconel 718 are specified, despite their notorious difficulty in machining .

These materials exhibit poor thermal conductivity, meaning cutting heat transfers into the tool rather than the chip. They also work-harden rapidly, requiring careful control of cutting parameters to avoid surface damage that could initiate fatigue cracks . Successfully machining them demands not just capable machines, but deep process knowledge.

The Multi-Axis Advantage

Complex aerospace geometries—curved surfaces, deep cavities, multi-angle holes—are where multi-axis CNC machining proves indispensable. Five-axis machining allows complex, contoured parts to be produced in a single setup, reducing repositioning errors and improving dimensional consistency . For components like turbine blades with twisting, variable cross-sections, the ability to continuously orient the cutting tool relative to the workpiece surface is not a luxury but a necessity.

Consider the tolerances involved. A turbine blade may have a profile tolerance of just 0.04 mm, with leading and trailing edges requiring even tighter control at 0.02 mm . The blade’s edge thickness can measure only 0.1 mm. Achieving these specifications requires machine tools with exceptional dynamic stiffness and thermal stability. Modern five-axis machining centers address this through active cooling systems that maintain temperature fluctuations within 1.2°C over 24 hours of continuous operation, and vibration damping designs that reduce chatter during heavy cutting .

AS9100D and the Documentation Imperative

In aerospace manufacturing, the part is only half the deliverable. The other half is the paper trail.

AS9100D serves as the baseline quality management standard, building on ISO 9001 with requirements specific to flight hardware. It mandates risk management throughout production, configuration control for drawings and specifications, counterfeit parts prevention, and full material traceability . A shop without current AS9100D certification is not set up for aerospace work—period.

Material traceability means every finished part can be traced back to the specific heat lot of raw material from which it was machined. Mill certificates must be on file, heat lot tracking maintained through production, and lot separation enforced on the shop floor . If a material issue surfaces years later, the manufacturer must be able to identify every affected part.

First Article Inspection (FAI) per AS9102 is another non-negotiable. Before production begins, the first production-representative part is thoroughly inspected against the drawing, specifications, and process plan. This is not a formality—it is a validation that the manufacturing process is capable of producing conforming parts .

For special processes like heat treating, welding, and chemical processing, NADCAP accreditation is often required. These are operations where the quality of the result cannot be fully verified by post-process inspection alone. A wrong heat treat temperature can weaken metal without visible indication; only process control and accreditation ensure reliability .

From Prototype to Production

Aerospace programs rarely begin with mass production. Development cycles typically start with prototypes, test articles, and qualification units before moving to full-rate manufacturing. Small-batch CNC machining accommodates this reality, allowing manufacturers to produce limited quantities for design verification and functional testing without investing in hard tooling .

This flexibility extends to design changes. When test results reveal the need for modification—thicker walls, different hole patterns, revised corner radii—CNC machining adapts through programming changes rather than new fixtures or molds. The same five-axis machine that produced the original design can produce the revised one, often within days.

The market reflects this demand. Aerospace CNC machining services represent a growing segment, driven by increasing aircraft production rates and the constant need for spare parts to sustain existing fleets . As commercial aviation expands and defense budgets modernize aging fleets, the demand for precision-machined components will only intensify.

The Bottom Line

CNC machining aircraft parts is a discipline defined by extremes—extreme materials, extreme tolerances, extreme consequences of failure. It requires machine tools with the rigidity and thermal stability to hold microns, quality systems with the rigor to document every step, and process knowledge to machine alloys that seem designed to resist cutting. The companies that succeed in this space understand that the cheapest quote is often the most expensive, because rework, scrap, and failed audits cost far more than getting it right the first time .

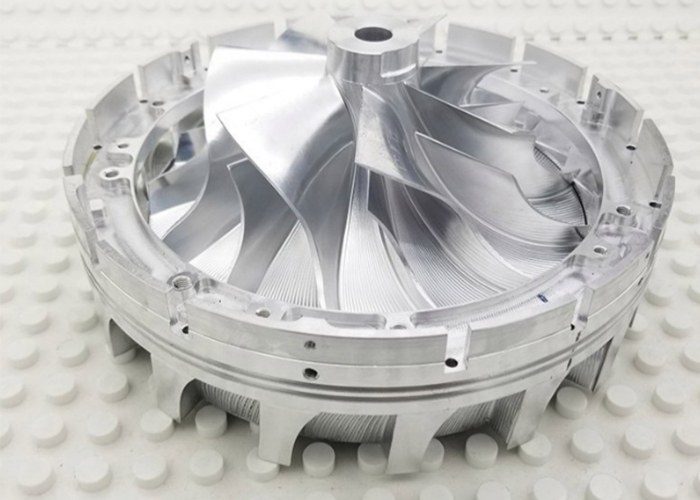

Computer Numerical Control (CNC) machining is a subtractive manufacturing process in which pre-programmed computer software dictates the movement of factory tools and machinery. For aerospace applications, this technology offers an unmatched combination of precision, repeatability, and material versatility. As the industry pushes toward lighter, stronger, and more fuel-efficient aircraft, the role of CNC machining has never been more critical.

The Demands of Aerospace Manufacturing

Aerospace components operate in environments that most machinery never encounters. They must withstand extreme temperatures, from the freezing cold of high altitudes to the blistering heat of engine combustion. They face intense vibration, high pressure, and corrosive chemicals. At the same time, they must be as lightweight as possible to improve fuel efficiency and payload capacity.

These conflicting demands—strength versus weight, durability versus precision—require manufacturing processes that can handle complex geometries and exotic materials. CNC machining excels here. Unlike casting or forging, which often require secondary operations and can introduce internal defects, CNC machining produces parts with tight tolerances, excellent surface finishes, and consistent quality.

Materials Matter

One of the primary reasons CNC machining is indispensable in aerospace is its ability to work with high-performance materials. Common aerospace materials include:

• Titanium alloys: Known for their exceptional strength-to-weight ratio and corrosion resistance, titanium alloys are used in airframes, engine components, and fasteners. However, titanium is notoriously difficult to machine, requiring specialized tooling and careful heat management.
• Aluminum alloys: Lightweight and easy to machine, aluminum is used for structural components, fuselage panels, and wings. High-strength alloys like 7075 and 2024 are common in aerospace applications.
• Inconel and nickel alloys: These superalloys retain their strength at high temperatures, making them ideal for jet engine turbine blades and exhaust systems.
• Stainless steel: Used in hydraulic systems, fuel lines, and structural brackets, stainless steel offers a balance of strength and corrosion resistance.
• Composites: While not metals, carbon-fiber reinforced polymers (CFRP) are increasingly machined using CNC equipment for drilling and trimming operations.

Each material presents unique challenges. Titanium, for example, conducts heat poorly, causing heat to concentrate at the cutting edge and leading to rapid tool wear. Inconel work-hardens quickly, requiring slow speeds and high coolant pressure. Successful aerospace CNC machining demands not only the right machines but also deep metallurgical knowledge and optimized cutting strategies.

Tolerances and Quality Control

In aerospace, tolerances are measured in microns. A typical CNC machined aerospace part might have tolerances of ±0.001 inches (0.025 mm) or tighter. For critical engine components, tolerances can be even more stringent. Achieving such precision requires:

• Advanced multi-axis CNC machines: 5-axis machining centers allow complex parts to be produced in a single setup, reducing errors caused by repositioning.
• High-speed spindles: These enable fine surface finishes and efficient material removal.
• In-process inspection: Probing systems and laser scanners verify dimensions during machining, catching deviations before they become defects.
• Final quality assurance: Coordinate Measuring Machines (CMMs), optical comparators, and non-destructive testing (NDT) methods like X-ray and dye penetrant inspection ensure every part meets specifications.

Traceability is another critical factor. Every aerospace part must be traceable back to its raw material batch, and every machining operation must be documented. This level of record-keeping is essential for safety audits and accident investigations.

Applications Across the Aerospace Spectrum

CNC machined aerospace parts are found in virtually every system of an aircraft or spacecraft:

• Engine components: Turbine blades, compressor disks, combustion chambers, and fuel nozzles.
• Airframe structures: Wing ribs, spars, fuselage frames, and landing gear components.
• Avionics and control systems: Housings, brackets, and heat sinks for electronic equipment.
• Hydraulic and pneumatic systems: Manifolds, valves, and actuators.
• Spacecraft: Structural panels, propulsion system parts, and satellite components.

In each case, the ability to produce complex, lightweight, and durable parts quickly and consistently is what makes CNC machining the preferred method.

The Future of CNC Machining in Aerospace

The aerospace industry is evolving rapidly. Trends such as electric propulsion, urban air mobility, and reusable rockets are creating new demands for manufacturing. CNC machining is adapting in several key ways:

• Automation and robotics: Lights-out machining, where factories run unattended overnight, is becoming more common. Robotic loading and unloading systems keep spindles running 24/7.
• Additive manufacturing integration: Many aerospace companies now combine 3D printing with CNC machining. A part might be printed near-net shape and then CNC machined to final tolerances, saving material and time.
• Digital twins and simulation: Virtual models of machining processes help predict tool wear, optimize cutting paths, and reduce trial-and-error.
• Sustainable machining: Minimum quantity lubrication (MQL), cryogenic cooling, and energy-efficient machine tools are reducing the environmental footprint of aerospace manufacturing.

Conclusion

CNC machined aerospace parts are more than just components—they are the product of precision engineering, advanced materials science, and rigorous quality control. From the turbine blades that power jet engines to the structural frames that hold an aircraft together, CNC machining enables the performance, safety, and efficiency that modern aviation demands.

As aerospace technology advances, so too will CNC machining. The pursuit of lighter, stronger, and more reliable parts will continue to drive innovation in multi-axis machining, automation, and digital manufacturing. For engineers and manufacturers, the sky is no longer the limit—it is just the beginning.

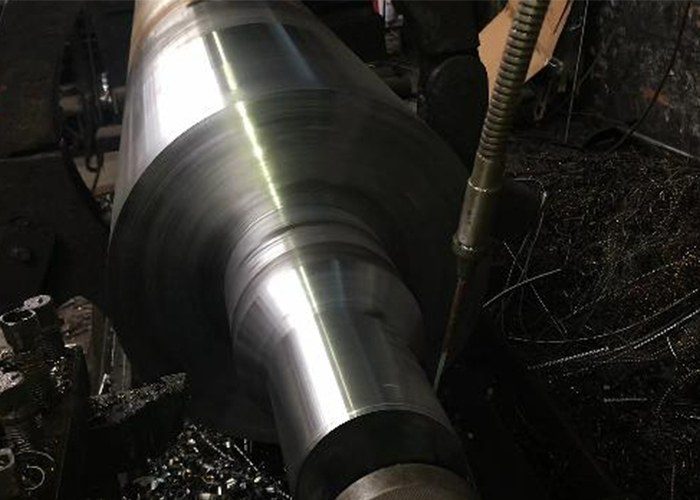

Understanding the Essence of Traditional CNC Turning

At its core, traditional CNC turning is a machining process where a single-point cutting tool is fed into a rotating workpiece to remove material and create a desired shape. Unlike more exotic or emerging technologies, this method is “traditional” because it is built upon decades of proven mechanical principles. The “CNC” component, however, elevates it from a manual craft to a highly repeatable, automated science.

In a traditional CNC turning service, a computer program (G-code) directs the machine’s movements. The workpiece—typically a bar of metal, plastic, or composite—is held in a chuck and spun at high speeds. The cutting tool, mounted on a turret, moves linearly along the X and Z axes to perform operations like facing, turning, grooving, threading, and boring. What makes this service “traditional” is its reliance on single-point tooling and a subtractive mindset, as opposed to milling, which uses multi-point cutters, or 3D printing, which adds material layer by layer.

Why “Traditional” Does Not Mean Outdated

There is a common misconception that traditional CNC turning is a legacy process being phased out by newer technologies like Swiss turning or mill-turn centers. This could not be further from the truth. In fact, traditional CNC turning services are more relevant than ever, primarily due to three factors: versatility, cost-efficiency, and surface finish.

First, versatility. A traditional CNC lathe can handle a vast range of part sizes, from tiny medical screws to large hydraulic shafts. It excels at producing parts with rotational symmetry, which are ubiquitous in mechanical assemblies. Second, cost-efficiency. For medium to high-volume production runs, traditional CNC turning offers an exceptional cost-per-part ratio. The tooling is relatively inexpensive, setup times are predictable, and the process is highly repeatable. Third, surface finish. The single-point cutting action of a traditional lathe often produces a superior surface finish right off the machine, reducing or eliminating the need for secondary grinding or polishing operations.

Key Capabilities of a Traditional CNC Turning Service

When you engage a traditional CNC turning service, you are tapping into a specific set of capabilities that define the process:

1. Turning and Facing: The most basic operations, creating cylindrical diameters and flat surfaces perpendicular to the axis of rotation.
2. Threading: Cutting precise internal or external threads, from standard UNC/UNF to metric and pipe threads, essential for fastening and fluid transfer.
3. Grooving and Parting: Cutting narrow channels for O-rings or snap rings, and slicing finished parts off the stock bar.
4. Boring: Enlarging and finishing an existing hole to achieve high precision internal diameters.
5. Knurling: Creating a textured, diamond-patterned surface for improved grip.

These capabilities are performed on a range of materials, including aluminum, brass, stainless steel, titanium, engineering plastics like Delrin and PEEK, and even exotic alloys. The “traditional” aspect ensures that the process is well-understood, with a deep knowledge base for troubleshooting and optimization.

The Role of Traditional CNC Turning in Modern Supply Chains

In today’s supply chain, reshoring and agile manufacturing are becoming priorities. Traditional CNC turning services are at the heart of this shift. Because the equipment is widely available and the skills are transferable, local machine shops can quickly set up production for critical components. This reduces lead times and mitigates the risks associated with overseas dependency.

Moreover, traditional CNC turning is often the first step in a hybrid manufacturing workflow. A part might be turned to a near-net shape and then finished with a milling operation or even a grinding process. This synergy demonstrates that traditional methods are not competitors to new technology but collaborators.

Choosing the Right Partner for Traditional CNC Turning

Not all turning services are created equal. When selecting a partner for your project, consider their expertise in your material, their quality control processes (ISO 9001, AS9100, etc.), and their ability to handle both prototyping and production. A true traditional CNC turning service will offer design-for-manufacturability (DFM) feedback, helping you optimize your part to reduce cost and improve performance.

Conclusion

The traditional CNC turning service is far from a relic. It is a robust, reliable, and remarkably efficient method for producing the cylindrical components that form the backbone of modern machinery. By combining the time-tested principles of single-point machining with the precision of computer control, this service delivers the quality and consistency that industries demand. As manufacturing evolves, the traditional CNC lathe will continue to spin, quietly and precisely, shaping the world one revolution at a time.

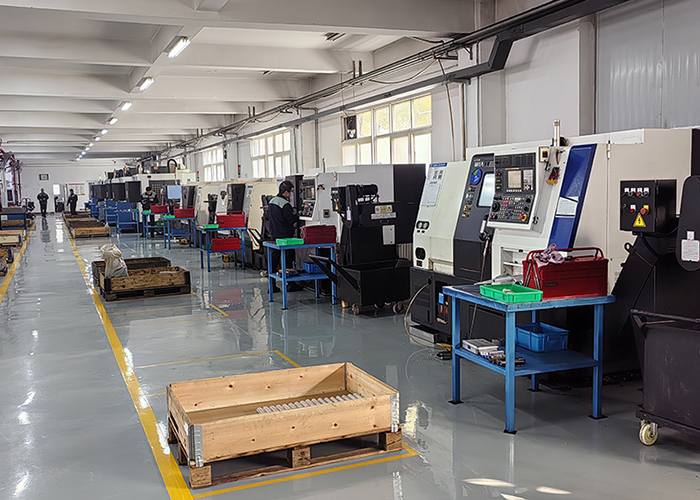

What Is a CNC Precision Turning Shop?

A CNC precision turning shop is a manufacturing facility that uses computer numerical control (CNC) lathes to produce cylindrical or rotationally symmetrical parts. Unlike conventional manual turning, CNC turning relies on pre-programmed computer code to control the movement of cutting tools, resulting in unmatched repeatability, speed, and accuracy. The term “precision” indicates that these shops work within very tight tolerances—often ±0.001 inches (0.025 mm) or even tighter—making them suitable for applications where even the slightest deviation could cause failure.

Core Equipment and Technologies

A typical CNC precision turning shop is equipped with a range of advanced machinery. The most common are CNC lathes, which can be horizontal or vertical. Many modern shops also use Swiss-type lathes, which are ideal for small, complex parts with high length-to-diameter ratios. Live tooling allows turning centers to perform milling, drilling, and tapping operations in a single setup, reducing lead times and improving accuracy.

Supporting equipment includes coordinate measuring machines (CMMs), optical comparators, and surface roughness testers. These quality control tools ensure that every part meets the customer’s specifications. Additionally, CAD/CAM software is used to design parts and generate toolpaths, bridging the gap between engineering drawings and finished products.

The Precision Turning Process

The process begins with a customer’s drawing or 3D model. Engineers at the shop review the design for manufacturability, selecting the appropriate material—such as aluminum, stainless steel, brass, titanium, or engineering plastics. A CNC program is then created and simulated to verify tool movements.

During machining, a bar stock or cast blank is fed into the lathe. As the material rotates, single-point cutting tools remove material to create the desired shape. Coolant is applied to manage heat and extend tool life. Depending on complexity, parts may undergo multiple operations, including turning, facing, grooving, threading, and parting off.

After machining, parts are deburred, cleaned, and inspected. Statistical process control (SPC) is often used to monitor consistency. If any dimension falls outside the tolerance, the process is adjusted immediately.

Why Precision Matters

Precision turning is critical because many industries cannot tolerate imperfections. In aerospace, a fuel injector component with a 0.0005-inch error could cause engine inefficiency or failure. In medical devices, a surgical instrument’s thread must mate perfectly to avoid patient risk. In automotive, transmission shafts must be perfectly balanced to prevent vibration and wear.

A reputable CNC precision turning shop invests in calibration, training, and continuous improvement to maintain these standards. Certifications such as ISO 9001, AS9100 (aerospace), and ISO 13485 (medical) demonstrate a shop’s commitment to quality.

Advantages of Working with a CNC Precision Turning Shop

1. High Accuracy and Repeatability – CNC machines produce identical parts thousands of times without deviation.
2. Complex Geometries – Multi-axis turning centers can create intricate features that manual machining cannot.
3. Fast Turnaround – Once programmed, production is rapid, especially for high-volume orders.
4. Material Versatility – Shops can machine metals, plastics, and exotic alloys.
5. Cost Efficiency – Reduced labor, less waste, and fewer secondary operations lower overall costs.
6. Scalability – From prototype to full production, a good shop scales with your needs.

Challenges Facing CNC Precision Turning Shops

Despite their advantages, these shops face challenges. Skilled machinists and programmers are in short supply. Equipment is expensive, and keeping up with new tooling and software requires continuous investment. Global competition pressures pricing, while customers demand ever-tighter tolerances and faster delivery. To thrive, shops must embrace automation, such as bar feeders and robotic loading, and adopt digital manufacturing technologies like IoT-enabled monitoring.

Choosing the Right CNC Precision Turning Shop

When selecting a partner, consider:

• Experience in your industry
• Certifications and quality management systems
• Equipment list – does it include Swiss lathes, live tooling, and CMMs?
• Lead times and on-time delivery record
• Communication and engineering support
• Pricing transparency

A shop that collaborates with you from design to delivery will save time and money.

The Future of CNC Precision Turning

Industry 4.0 is reshaping precision turning. Shops are integrating sensors, data analytics, and AI to predict tool wear and optimize cutting parameters. Automation is reducing human error and enabling lights-out manufacturing. Additive manufacturing is sometimes combined with turning for hybrid processes. Sustainability is also gaining attention, with shops recycling chips and using minimum quantity lubrication.

Conclusion

The CNC precision turning shop is more than a workshop—it is a critical link in the global supply chain. It turns raw metal into the components that keep airplanes flying, medical devices saving lives, and automobiles running efficiently. By understanding what these shops do, how they work, and what to look for, businesses can partner effectively and gain a competitive edge. As technology advances, the precision turning shop will continue to evolve, but its core mission remains unchanged: delivering accuracy, reliability, and quality, one part at a time.

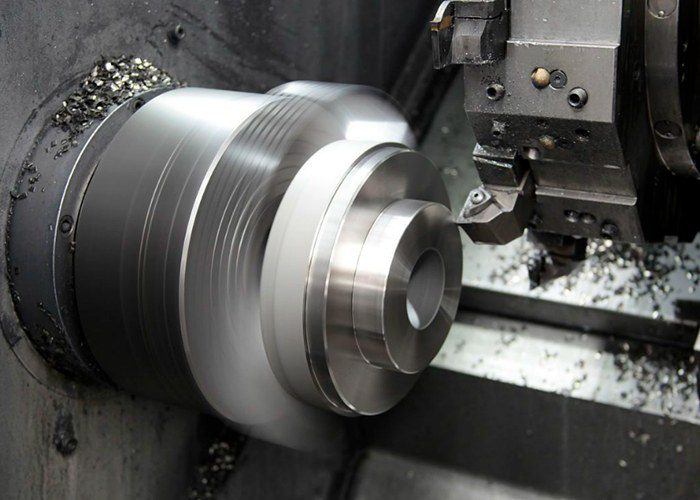

CNC micro-turning is a precision machining process that uses computer numerical control (CNC) lathes—often Swiss-type turning centers—to create small, complex parts from bar stock. Unlike conventional turning, where the workpiece rotates against a single-point cutting tool, micro-turning operates at the microscale. Parts typically feature diameters below 3 mm, and many are smaller than 1 mm. Tolerances can reach ±0.001 mm or even tighter, with surface finishes measured in mirror-like Ra values. The process is subtractive: material is removed to achieve the desired geometry, but the precision required is extraordinary.

The equipment itself is highly specialized. Swiss-type lathes are the workhorse of micro-turning because their sliding headstock design supports the workpiece close to the cutting tool, minimizing deflection. Live tooling allows milling, drilling, and cross-drilling in the same setup, enabling complex features like flats, slots, threads, and eccentric geometries. Multi-axis configurations—often with seven or more axes—permit simultaneous machining, reducing cycle times and eliminating secondary operations. For even finer work, micro-turning centers may incorporate air-bearing spindles that rotate at tens of thousands of RPM, ensuring smooth cuts and minimal vibration.

Materials used in CNC micro-turning span a wide spectrum. Metals include stainless steel (especially biocompatible grades like 316L), titanium, brass, aluminum, copper, and exotic alloys such as Inconel and Nitinol. Plastics are equally important: PEEK, PTFE, acetal, and polycarbonate are common for insulators, seals, and lightweight components. The choice of material depends on the application—medical implants demand corrosion resistance and biocompatibility; aerospace sensors require high strength-to-weight ratios; electronics need excellent conductivity. Each material presents unique machining challenges, from work hardening in stainless steel to thermal expansion in plastics.

The applications of CNC micro-turning are as diverse as they are critical. In the medical field, micro-turned parts include catheter tips, biopsy needles, surgical stapler components, bone screws, and dental implants. These parts must be flawless; a burr or dimensional error can mean the difference between a successful procedure and a patient complication. In aerospace, micro-turning produces fuel injector nozzles, pressure sensors, and guidance system components that operate under extreme temperatures and vibrations. Electronics rely on micro-turned pins, connectors, and RF contacts for smartphones, wearables, and satellites. Automotive uses include fuel injector parts, oxygen sensors, and miniature actuators for advanced driver-assistance systems. Even optics benefit—micro-turned ferrules and lens mounts ensure precise alignment in fiber optic networks.

The advantages of CNC micro-turning are compelling. First, it offers unmatched repeatability. Once a program is validated, thousands of identical parts can be produced with negligible variation. Second, it minimizes material waste; near-net-shape bar stock is machined to final form, and scrap is recyclable. Third, it handles hard materials that other processes cannot, such as heat-treated titanium or carbide. Fourth, automation enables lights-out manufacturing, where machines run unattended overnight, reducing labor costs. Finally, the process integrates easily with secondary operations like deburring, cleaning, and inspection, streamlining production.

Yet micro-turning is not without challenges. Tool deflection is a constant enemy; even a tiny force can bend a 0.5 mm diameter tool, causing taper or chatter. Thermal expansion—from both the machine and the workpiece—can shift dimensions by microns, requiring temperature-controlled environments. Chip control is difficult because small chips can wrap around tools or clog coolant passages. Handling finished parts is another hurdle; tweezers and vacuum systems are often needed to avoid damage. Metrology is equally demanding: measuring a 0.2 mm feature requires vision systems, laser micrometers, or coordinate measuring machines (CMMs) with micro-probes. Finally, skilled operators are scarce; programming and setting up micro-turning centers requires years of experience.

Quality control in CNC micro-turning is rigorous. In-process monitoring uses force sensors and acoustic emission to detect tool wear or breakage. Vision systems inspect parts at high magnification, while optical comparators verify profiles. For medical and aerospace parts, cleanroom environments and full traceability are mandatory. Statistical process control (SPC) tracks dimensions over time, and first-article inspection validates every new setup. The goal is zero defects—because at this scale, a single out-of-tolerance part can cause a system failure.

Looking ahead, CNC micro-turning is evolving. Hybrid machines that combine turning with additive manufacturing allow repairs and custom features. Robotics and automated pallet systems enable unattended production. IoT sensors predict maintenance needs and optimize cutting parameters in real time. New tool materials, such as diamond-coated carbide and cubic boron nitride, extend tool life. And as demand grows for microfluidic devices, implantable sensors, and tiny drones, the boundaries of what can be turned will continue to expand.

In conclusion, CNC micro-turning parts manufacturing is a cornerstone of modern precision engineering. It transforms raw bars into critical components that power medical breakthroughs, aerospace innovation, and consumer electronics. While the challenges are significant—deflection, thermal control, metrology, and skilled labor—the rewards are immense. As technology shrinks further, the ability to turn ever-smaller parts with ever-tighter tolerances will remain a vital competitive advantage. For engineers and manufacturers, mastering micro-turning is not just about making small parts; it is about enabling the big ideas of tomorrow.

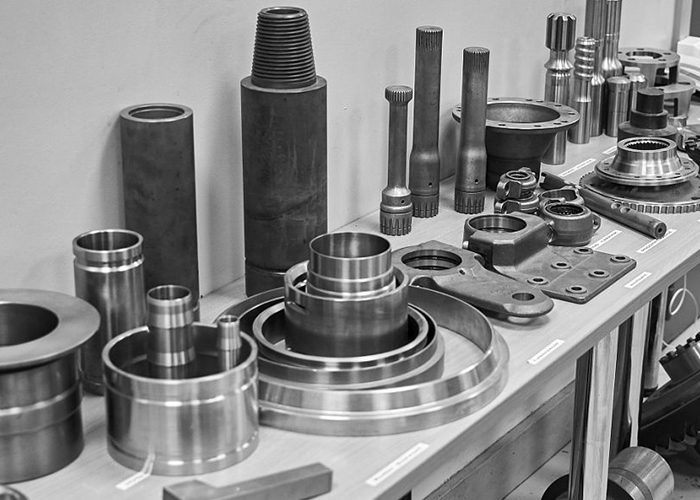

Precision at the Extreme

The tolerance requirements for defense applications are extraordinary. Aerospace and defense CNC manufacturing achieves tolerances as tight as ±0.0001 inches—approximately 40 times tighter than standard precision machining. Leading manufacturers routinely hold tolerances down to ±0.0002 inches on suitable part geometries. For components such as missile guidance housings, an off-axis deviation of just 0.002 inches can compromise seeker alignment and ultimately mission accuracy.

Achieving such precision requires more than capable machines. It demands a complete quality ecosystem. AS9100D certification, ITAR registration, and NADCAP accreditation for special processes are non-negotiable credentials for any supplier serving defense programs. Every critical part must be accompanied by CMM inspection reports, material certifications, and full heat-lot traceability from raw stock to finished component.

Materials That Define Capability

Defense turned components are machined from some of the most challenging materials in existence. Titanium alloys, particularly Ti-6Al-4V, are essential for strength-to-weight critical components and are widely used in missile fin actuator brackets and structural hardware. Nickel-based superalloys such as Inconel 625 and 718 dominate high-temperature applications, including missile motor cases and nozzle throat sections where operating temperatures can exceed 2,000°F. High-strength steels like 4340 and 4140 are specified for warhead casings, breech mechanisms, and firing pins, where fatigue resistance and uniform wall thickness are paramount.

Each material presents distinct machining challenges. Inconel work-hardens rapidly, demanding specialized tooling and conservative cutting parameters. Titanium’s low thermal conductivity concentrates heat at the cutting edge, requiring high-pressure coolant strategies. The ability to machine these alloys to aerospace standards separates qualified defense suppliers from general-purpose machine shops.

Applications Across Weapons and Platforms

CNC turning produces a remarkably diverse range of defense components. In firing mechanisms, turned parts include barrels, breeches, firing pins, and insert rods. Aiming and control systems rely on turned spindles, drives, and locking controls, while hydraulic and pneumatic systems depend on precision-turned regulator valves and control cylinders. Firearm manufacturers utilize Swiss-type turning for components such as safety selectors, detents, and trigger components, where smooth surface finishes and exact fit are essential.

At the platform level, defense turning supports missile programs through guidance section housings, fin actuator brackets, and seeker head components. Programs including LRASM, SM-6, Javelin, and next-generation hypersonic weapons are driving sustained demand for these precision-turned parts. In aerospace applications, turned components appear in propulsion systems, turbine assemblies, and fuel delivery hardware, where reliability under extreme conditions is non-negotiable.

Market Dynamics and Strategic Shifts

The precision turned product manufacturing market is projected to grow from approximately $121 billion in 2025 to over $172 billion by 2031, representing a compound annual growth rate of 6.06%. CNC processes alone account for nearly 66% of this market share and are expanding at an even faster rate.

Defense contracts are intensifying the reshoring of precision machining supply chains. North American and European OEMs are bringing machining programs home to mitigate geopolitical and logistical risks, with defense contracts specifically requiring domestic or allied sourcing. This movement creates substantial opportunities for qualified domestic suppliers but also places pressure on capacity and workforce availability. The U.S. manufacturing sector faces a projected 2.1 million role deficit by 2030, with precision machining among the hardest positions to fill.

Technology Trends

Modern defense CNC turning increasingly integrates multi-axis and multitasking capabilities. Machines capable of turning, milling, drilling, and threading in a single setup reduce tolerance stack-up and eliminate repositioning errors that accumulate across multiple operations. Five-axis and mill-turn centers now handle complex geometries—such as the profiled bores and interrupted cuts found in breech mechanisms—that previously required dedicated fixtures and multiple setups.

Swiss-type turning has emerged as a critical capability for small-diameter defense components. By supporting the workpiece immediately adjacent to the cutting tool, Swiss machines minimize vibration and achieve micron-level precision on parts such as firing pins and optical housing components that would deflect under conventional turning forces.

Conclusion

Defense CNC turning sits at the intersection of extreme precision, exotic materials, and uncompromising quality systems. As military platforms grow more sophisticated and geopolitical pressures reshape supply chains, the demand for turned components that perform flawlessly in the harshest conditions will only intensify. Manufacturers that combine advanced multitasking equipment with rigorous certification and traceability protocols will remain indispensable partners to the defense industrial base—and by extension, to the security they help sustain.

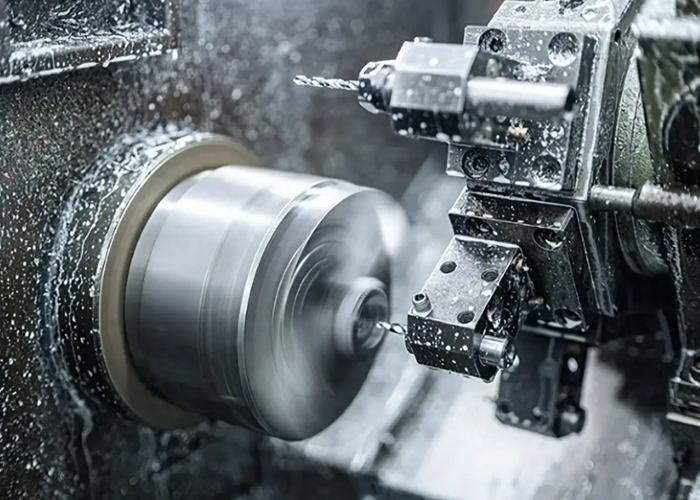

Why CNC Turning in China Is So Competitive

China’s manufacturing ecosystem is the primary reason. A single region can provide raw material, tooling, heat treatment, surface finishing, inspection, and logistics. This reduces lead times and costs. Shenzhen, Dongguan, Ningbo, Suzhou, and Qingdao have clusters of precision machining suppliers. Many shops run lights-out or multi-shift production, allowing them to handle both low-volume custom work and mass production. Labor costs are still lower than in North America and Western Europe, but the bigger advantage is scale and speed. Suppliers often quote within 24 hours, produce samples in days, and ramp to production quickly.

Capabilities and Equipment

Modern Chinese CNC turning shops use CNC lathes with live tooling, Swiss-type lathes, multi-spindle machines, and mill-turn centers. These machines can combine turning, milling, drilling, tapping, and threading in one setup. Common tolerances range from ±0.01 mm for standard work to ±0.005 mm or tighter for precision parts. Surface finishes can reach Ra 0.4 µm or better when required. Shops can handle parts from a few millimeters to large shafts and flanges. For complex geometries, 5-axis machining and automation are increasingly common. CAD/CAM software such as SolidWorks, Fusion 360, Mastercam, and Siemens NX is widely used.

Materials and Finishes

Chinese CNC turning suppliers machine a broad range of materials. Metals include aluminum 6061, 7075, 2024; stainless steel 303, 304, 316, 17-4 PH; carbon steel, alloy steel, brass, copper, bronze, titanium, and Inconel. Plastics include POM, PTFE, PEEK, ABS, acrylic, nylon, and polycarbonate. Secondary operations include anodizing, zinc plating, nickel plating, chrome plating, powder coating, black oxide, passivation, heat treatment, and laser engraving. These services are often available under one roof or through nearby partners, which simplifies sourcing.

Industries Served

CNC turning in China supports many industries. Automotive suppliers need engine components, sensor housings, bushings, and fittings. Aerospace requires lightweight, high-strength parts with strict traceability. Medical device companies need surgical instruments, implants, and fluidic components made to ISO 13485. Electronics and robotics rely on connectors, shafts, heat sinks, and precision housings. Oil and gas, marine, energy, and consumer products also use Chinese CNC turning for durable, repeatable parts.

Quality Control and Standards

Quality is a major concern for overseas buyers, and leading Chinese suppliers address it with formal systems. Many are ISO 9001 certified; automotive shops hold IATF 16949; medical suppliers follow ISO 13485; aerospace suppliers may be AS9100 certified. Inspection typically includes calipers, micrometers, height gauges, thread gauges, optical comparators, and CMM machines. Suppliers can provide first article inspection reports, PPAP documents, material certificates, heat treatment certificates, and surface finish reports. Good factories separate incoming material inspection, in-process inspection, and final inspection. Some also use SPC and traceability systems.

Cost and Lead Time Factors

Several factors affect the price of CNC turning in China: material type, part complexity, tolerance, volume, surface finish, and secondary operations. Simple turned parts in aluminum can be inexpensive, while titanium or Inconel parts with tight tolerances cost more. Higher volumes usually lower unit cost because setup and tooling are spread across more pieces. Lead times vary from 3–7 days for prototypes to 2–6 weeks for production, depending on material availability and finishing. Shipping by express, air, or sea adds time and cost. Compared with many Western suppliers, China often offers strong value, especially for medium and high volumes.

How to Choose a Reliable Supplier

Choosing the right partner is critical. Start by checking experience, certifications, and equipment lists. Ask for samples or a trial order. Review their engineering support: can they suggest design changes for manufacturability, reduce cost, or improve tolerances? Communication matters. A supplier with English-speaking engineers, clear quotations, and fast replies is easier to work with. Protect intellectual property with NDAs and avoid sharing sensitive designs until trust is established. If possible, audit the factory or use a third-party inspection service. Also consider logistics, payment terms, and after-sales support.

Challenges and Considerations

Sourcing from China is not without challenges. Quality can vary between suppliers, so verification is essential. Cultural and language differences may cause misunderstandings. Shipping delays, tariffs, and geopolitical factors can affect cost and delivery. Buyers should plan buffer stock and maintain clear contracts. Working with a reputable supplier and a reliable inspection partner reduces risk.

The Future of CNC Turning in China

Chinese CNC turning is moving toward automation, robotics, and digital manufacturing. Factories are investing in automated loading, in-line measurement, and data-driven production. Industry 4.0 tools help monitor machines and predict maintenance. Sustainability is also gaining attention, with energy-efficient equipment and recycling programs. As global demand for precision parts grows, China will likely remain a leading source for CNC turning.

Conclusion

CNC turning in China offers global buyers a powerful combination of capability, speed, and cost efficiency. By understanding available processes, quality standards, and supplier selection, companies can source precision turned parts successfully. With the right partner, China can be more than a low-cost option—it can be a strategic manufacturing base for innovation and growth.

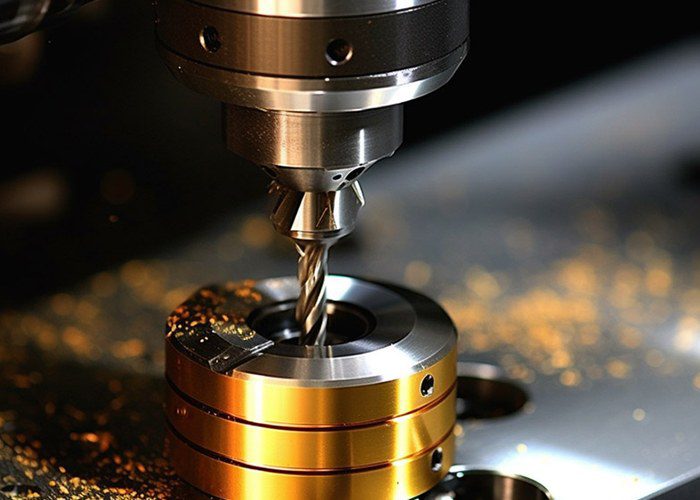

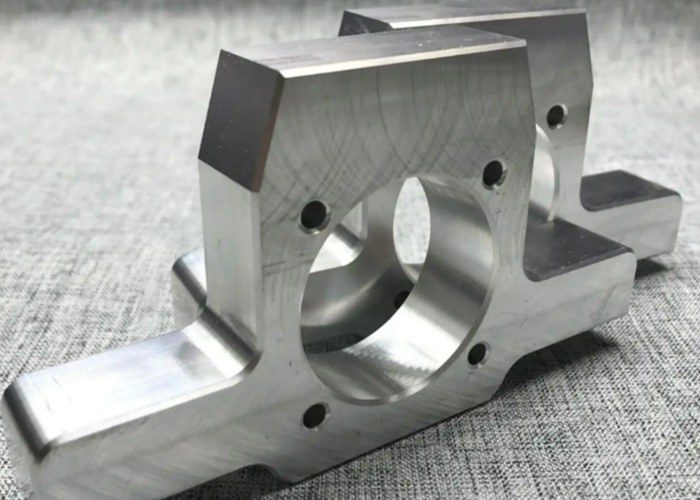

What Are Provided CNC Milling Parts?

Provided CNC milling parts are custom components produced through computer numerical control (CNC) milling. In this subtractive process, rotating cutting tools remove material from a solid block until the desired shape is achieved. The “provided” aspect emphasizes that the customer receives a finished, ready-to-use part, not just a machining service. A reliable supplier can provide CNC milling parts in prototype quantities, low-volume production runs, or high-volume orders. Each part is programmed from a CAD model, machined to tight tolerances, and inspected before shipping. This makes provided CNC milling parts ideal for engineers who need consistent quality without managing multiple vendors.

Why CNC Milling Remains a Top Choice

CNC milling offers excellent versatility. It can create complex geometries, sharp corners, slots, threads, pockets, and fine surface finishes. Unlike casting or forging, milling does not require expensive tooling for every design change. That makes it perfect for prototypes and bridge production. Multi-axis CNC machines, including 3-, 4-, and 5-axis centers, can machine parts from multiple angles in a single setup. This reduces handling errors and improves accuracy. For industries where failure is not an option, provided CNC milling parts deliver the strength and reliability that mass-produced alternatives often cannot match.

Materials for Provided CNC Milling Parts

The material choice depends on the application. Common metals include aluminum alloys, stainless steel, carbon steel, brass, copper, titanium, and tool steel. Aluminum is lightweight, corrosion-resistant, and easy to machine, making it popular for electronics enclosures and automotive components. Stainless steel offers strength and corrosion resistance for medical and food-processing equipment. Titanium is used in aerospace and medical implants because of its high strength-to-weight ratio. Plastics such as ABS, polycarbonate, POM, PTFE, and PEEK are also milled for insulating parts, seals, and prototypes. A professional supplier will help select the right material based on load, temperature, chemical exposure, and budget.

Tolerances, Finishes, and Quality Control

Precision is the main reason customers buy provided CNC milling parts. Typical tolerances range from +/-0.01 mm to +/-0.05 mm, depending on part size and material. Surface finishes can be as-machined, bead-blasted, anodized, powder-coated, polished, or plated. Quality control is critical. A good manufacturer uses calibrated micrometers, calipers, height gauges, and coordinate measuring machines (CMMs) to verify dimensions. First article inspection, in-process checks, and final inspection ensure every batch meets specifications. Certificates of conformance and material traceability add further confidence. When provided CNC milling parts pass these checks, they reduce assembly problems and field failures.

Industries That Rely on Provided CNC Milling Parts

Many sectors depend on CNC milling. Aerospace uses lightweight structural parts, brackets, and engine components. Automotive uses fixtures, prototypes, and performance parts. Medical uses surgical instruments, implant components, and diagnostic equipment. Electronics uses heat sinks, housings, and connectors. Robotics and automation use grippers, mounts, and precision frames. Energy, defense, and marine industries also rely on milled parts for harsh environments. Because CNC milling works with a wide range of materials and geometries, it supports innovation across nearly every engineering field.

Custom vs. Standard Provided CNC Milling Parts

Some buyers need standard replacement parts, while others need fully custom designs. Provided CNC milling parts can be either. Custom parts are machined from a customer’s 3D CAD files and 2D drawings. Standard parts may be produced from existing designs or samples. In both cases, clear communication is essential. The supplier should review the design for manufacturability, suggest cost-saving changes, and confirm critical dimensions. Prototyping allows form, fit, and function testing before full production. Once approved, the same program and fixtures are used for repeat orders, ensuring consistency.

How to Choose a Supplier

When selecting a partner for provided CNC milling parts, look beyond price. Check machining capabilities, maximum part size, axis count, tolerance range, and available materials. Ask about lead times, minimum order quantities, and finishing services. Review quality certifications such as ISO 9001, AS9100, or ISO 13485 if your industry requires them. A good supplier offers engineering support, fast quotes, and transparent communication. Request samples or past project examples. Reliability matters: a missed deadline can stop an entire production line. The best providers act as an extension of your engineering team.

Cost and Lead Time Considerations

Costs for provided CNC milling parts depend on material, complexity, tolerance, quantity, and finish. Simple parts in aluminum may be inexpensive, while tight-tolerance titanium components cost more. Higher quantities usually lower the per-part price because programming and setup are spread across more units. Lead times vary from a few days for prototypes to several weeks for production. To save time, provide complete CAD files, specify critical dimensions, and avoid unnecessary tolerances. Working with an experienced supplier helps balance cost, quality, and speed.

Conclusion

Provided CNC milling parts are more than machined metal or plastic. They are engineered solutions that keep modern products safe, efficient, and competitive. From rapid prototypes to production runs, CNC milling offers precision, flexibility, and material choice. By understanding materials, tolerances, finishes, and supplier capabilities, buyers can make better decisions. Whether you need one custom bracket or thousands of precision components, choosing the right manufacturing partner for provided CNC milling parts is an investment in quality, reliability, and long-term success.

What Are Mill Processing Parts?

Mill processing parts are finished or semi-finished components created by milling machines. A milling cutter rotates while the workpiece moves or stays fixed, depending on the machine configuration. The cutter removes material to form slots, pockets, holes, threads, flats, contours, and three-dimensional surfaces. CNC milling uses programmed instructions to control speed, feed, depth, and tool paths. This makes mill processing parts highly consistent, even when thousands of identical pieces are needed. The process can be applied to a single prototype or a high-mix, low-volume production run.

Materials Used for Mill Processing Parts

Material choice shapes performance and cost. Common metals include aluminum, carbon steel, stainless steel, brass, copper, titanium, and nickel alloys. Aluminum is light, machinable, and corrosion-resistant when treated. Stainless steel offers strength and hygiene for medical and food equipment. Titanium provides high strength-to-weight ratio for aerospace. Plastics such as ABS, POM, PTFE, polycarbonate, nylon, and acrylic are also milled for insulators, covers, and lightweight parts. The right material depends on mechanical load, temperature, chemical exposure, weight limits, and budget.

Common Milling Processes

Several milling methods produce mill processing parts. Face milling creates flat surfaces. Peripheral milling cuts along the side of the cutter. End milling is used for slots, pockets, and profiles. Thread milling forms internal or external threads. Contour milling follows curved shapes. Plunge milling removes material in difficult areas. Climb milling and conventional milling affect surface finish and tool wear. Machines range from three-axis to five-axis. Five-axis milling allows complex angles and undercuts in fewer setups, improving accuracy and reducing lead time.

Key Advantages

Mill processing parts offer excellent precision. Tolerances can reach ±0.001 inches or tighter, depending on the machine and material. Complex geometry is possible without expensive molds. Surface finishes can be smooth enough for sealing or cosmetic use. The process supports rapid prototyping and design changes. It is cost-effective for low to medium volumes, and it scales to production with consistent quality. Because no dedicated tooling is required, manufacturers can produce different part numbers on the same equipment.

Industries and Applications

Mill processing parts appear in nearly every sector. Aerospace uses them for brackets, housings, engine components, and structural fittings. Automotive relies on them for engine blocks, transmission cases, fixtures, and prototype vehicle parts. Medical devices use milled components for surgical instruments, implant prototypes, device enclosures, and fluid manifolds. Electronics benefit from heat sinks, connector housings, and chassis. Industrial machinery uses milled plates, valves, gears, and custom fixtures. Energy, robotics, defense, and consumer products also depend on precision milling.

Design Considerations

Designing mill processing parts requires attention to manufacturability. Engineers should provide a clear 3D CAD model and 2D drawing with critical tolerances. Deep pockets, sharp internal corners, and long thin walls increase cost and risk. Adding fillets, selecting standard thread sizes, and allowing tool access improve results. The choice of datum and workholding affects accuracy. Surface finish and heat treatment should be specified only where needed. Early supplier feedback through design for manufacturing (DFM) can reduce cost and avoid production delays.

Quality Control and Standards

Quality control is essential for mill processing parts. Manufacturers use calipers, micrometers, height gauges, optical comparators, and coordinate measuring machines (CMMs) to verify dimensions. Surface roughness testers check finish. First article inspection confirms the process before full production. Certifications such as ISO 9001, AS9100, ISO 13485, and IATF 16949 show that a supplier meets industry-specific requirements. Inspection reports and material certificates provide traceability.

Choosing a Manufacturer

Selecting the right partner for mill processing parts involves more than price. Look for experience with your material and tolerance range. Check machine capacity, including three-, four-, and five-axis capabilities. Ask about prototyping, finishing, assembly, and inventory support. Review certifications and quality records. Confirm lead times and communication channels. A reliable manufacturer will offer transparent quoting, DFM advice, and consistent documentation. This partnership protects schedules and ensures every batch meets specification.

Finishing and Post-Processing

Many mill processing parts need finishing. Anodizing improves aluminum corrosion resistance and appearance. Plating adds conductivity or wear resistance. Powder coating provides durable color. Heat treatment adjusts hardness and strength. Passivation cleans stainless steel. Polishing, bead blasting, and laser engraving improve function or branding. Post-processing should be planned early because it can affect dimensions and lead time.

Future Trends

The future of mill processing parts is digital and automated. CNC machines connect to factory networks, enabling real-time monitoring and predictive maintenance. Automation and robotics support lights-out manufacturing. AI optimizes tool paths and cutting parameters. Hybrid machines combine milling with additive manufacturing. Micro milling creates tiny features for medical and electronic devices. Sustainable machining reduces waste, energy use, and coolant consumption. These trends will make mill processing parts faster, smarter, and more precise.

Conclusion

Mill processing parts are more than machined metal or plastic. They are precision solutions that keep industries moving. From a single prototype to thousands of production units, milling delivers strength, accuracy, and flexibility. By understanding materials, processes, design rules, quality standards, and supplier capabilities, engineers can get better results. Whether for aerospace, medical, automotive, or electronics, mill processing parts remain a cornerstone of modern manufacturing.
