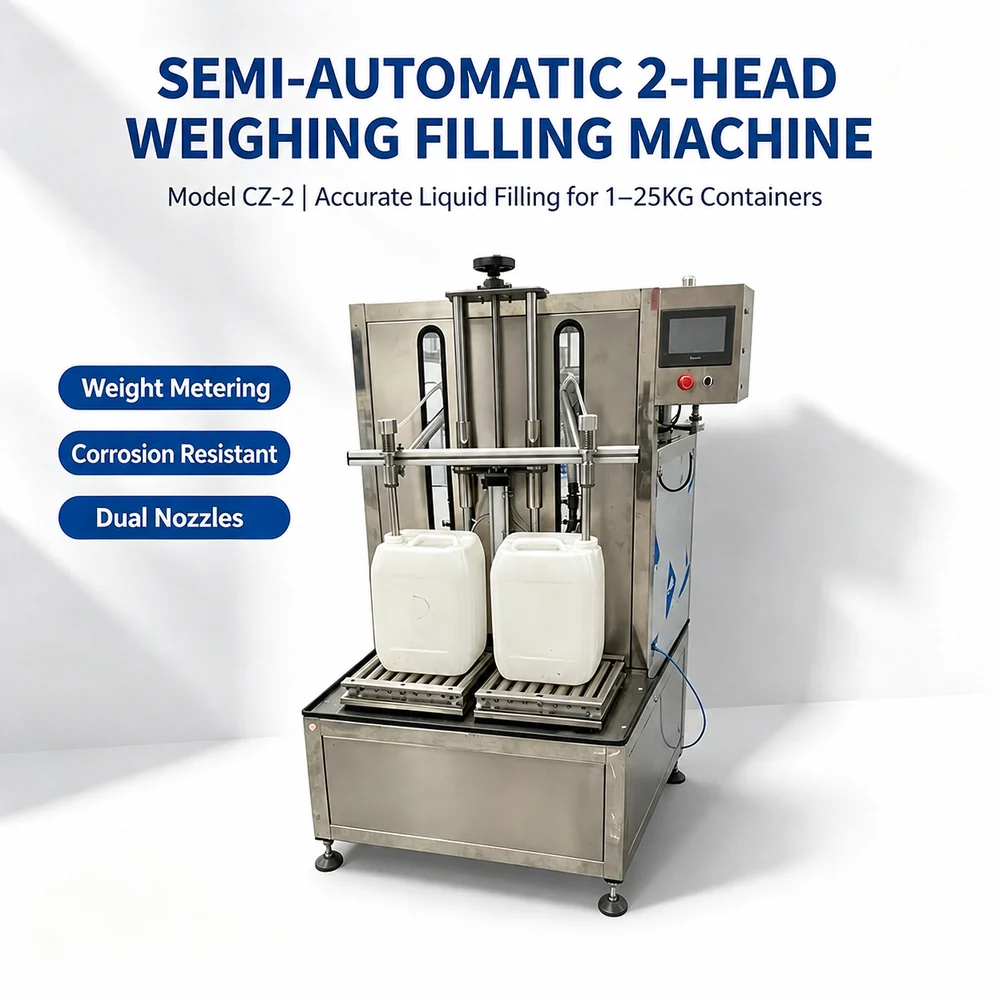

2-Head Corrosive Liquid Weigh Filling Machine
Semi-automatic dual-head weighing filler for 1-25 kg pails and drums, designed for corrosive acids, alkalis, pesticides, liquid fertilizer, detergent, hydrogen peroxide and water-treatment chemicals.
Solicitar um orçamento
Introduza a quantidade que precisa e adicione-a à sua lista de orçamentos para solicitar preços.
Descrição
2-Head Corrosive Liquid Weigh Filling Machine
This semi-automatic dual-head gravimetric filling machine is designed for filling corrosive liquids into plastic pails and drums. Its PP corrosion-resistant cabinet and corrosion-resistant liquid-contact parts support stable operation in chemical plants, pesticide workshops, fertilizer production facilities, detergent factories and water-treatment chemical operations.
Key Product Advantages
- Corrosion-resistant construction: The acid- and alkali-resistant cabinet supports reliable operation in demanding chemical production environments.

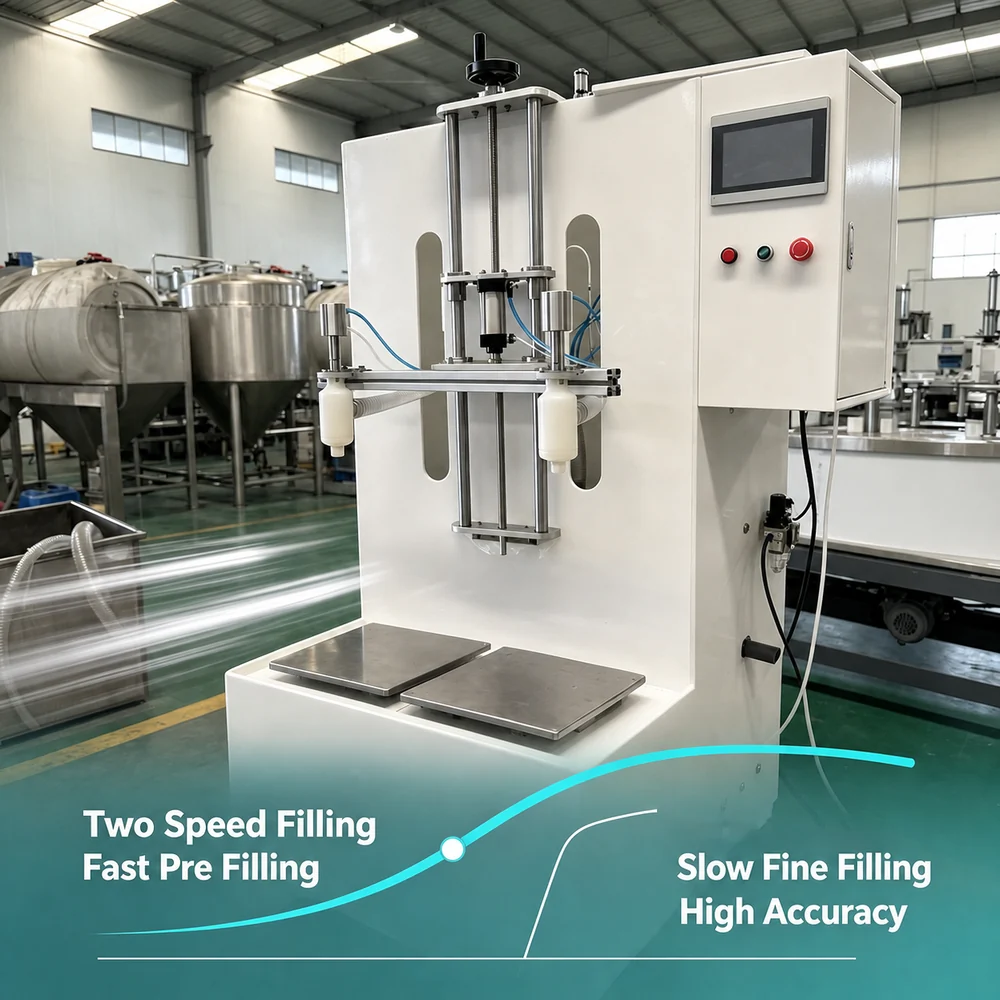

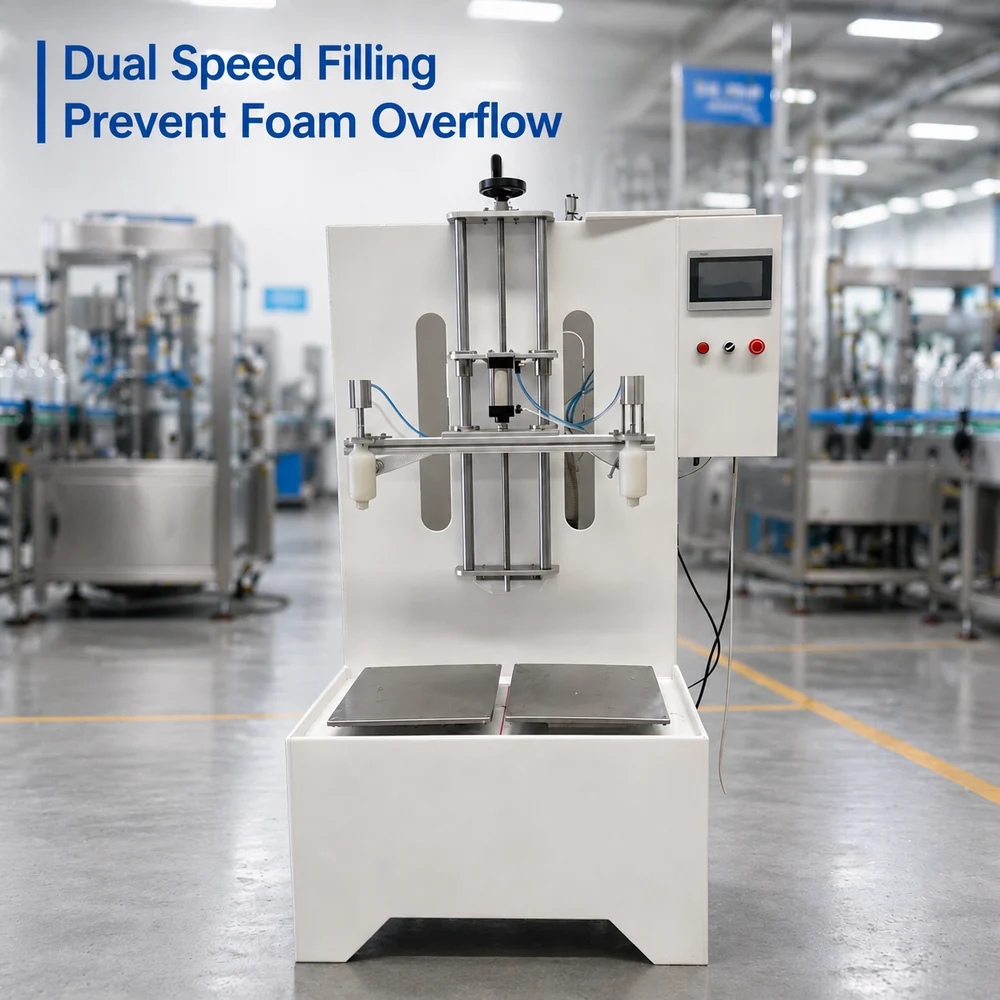

- Dual-speed weighing control: Fast and slow filling stages improve filling accuracy and help reduce overflow and raw-material loss.

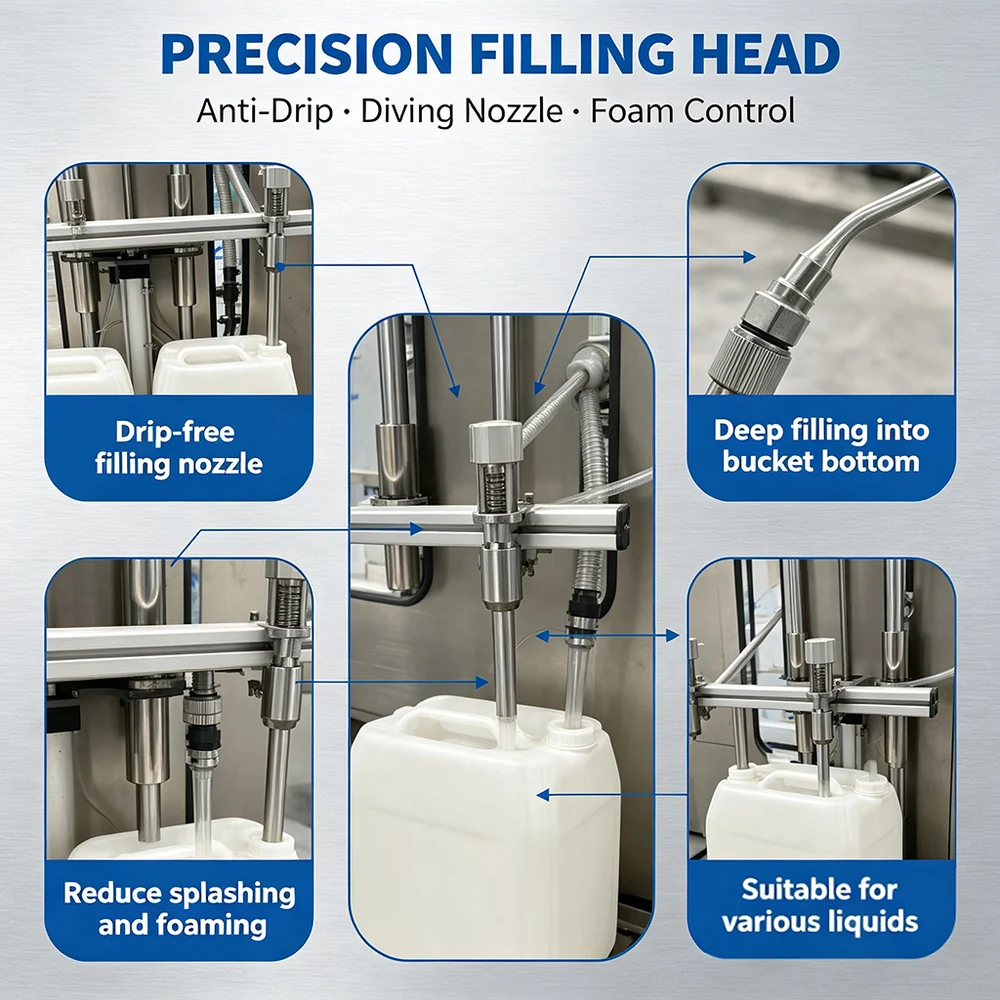

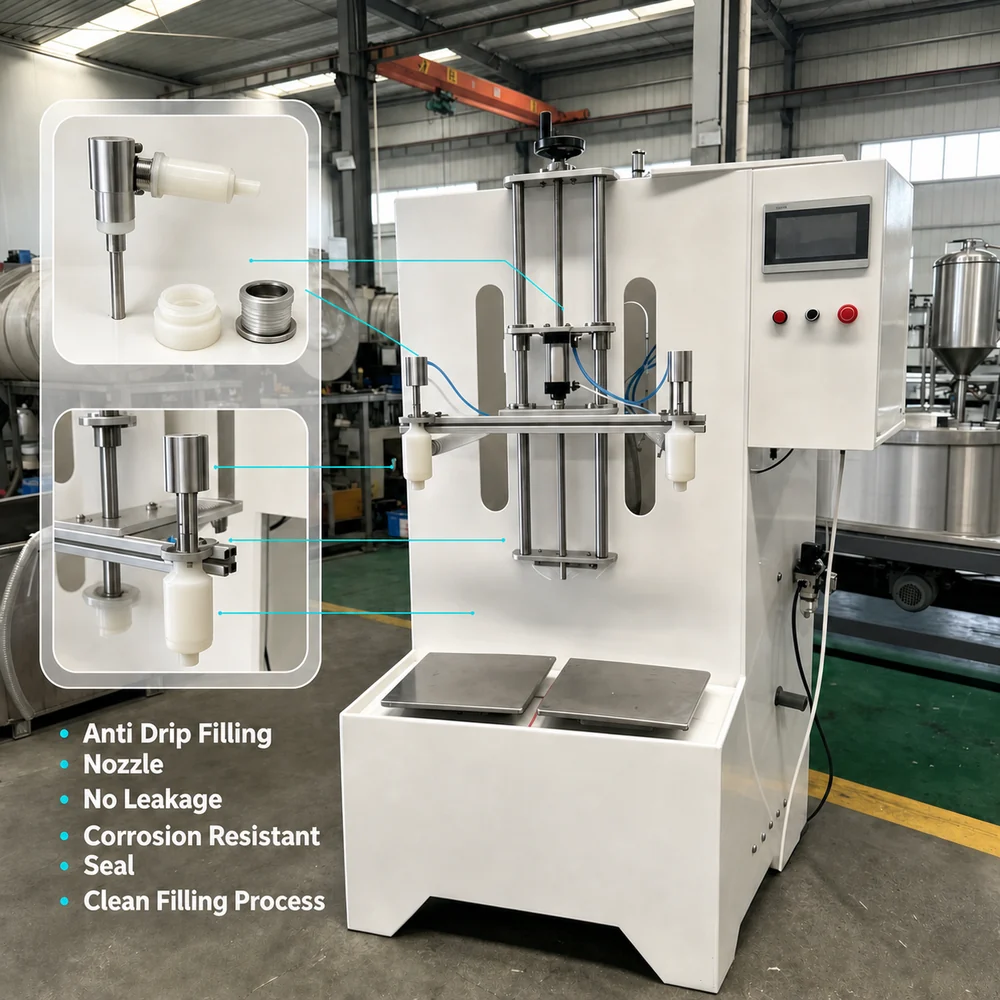

- Anti-drip nozzles: The nozzle design helps keep pesticide and chemical workshops clean while reducing cross-contamination.
- Optional diving filling heads: Bottom-up filling can reduce foaming and splashing when filling detergents and other foaming liquids.
- Gross/net weight modes: Flexible mode switching supports different packaging and process requirements.
- Touch-screen adjustment: Operators can set filling parameters from the touch panel for straightforward production changeovers.

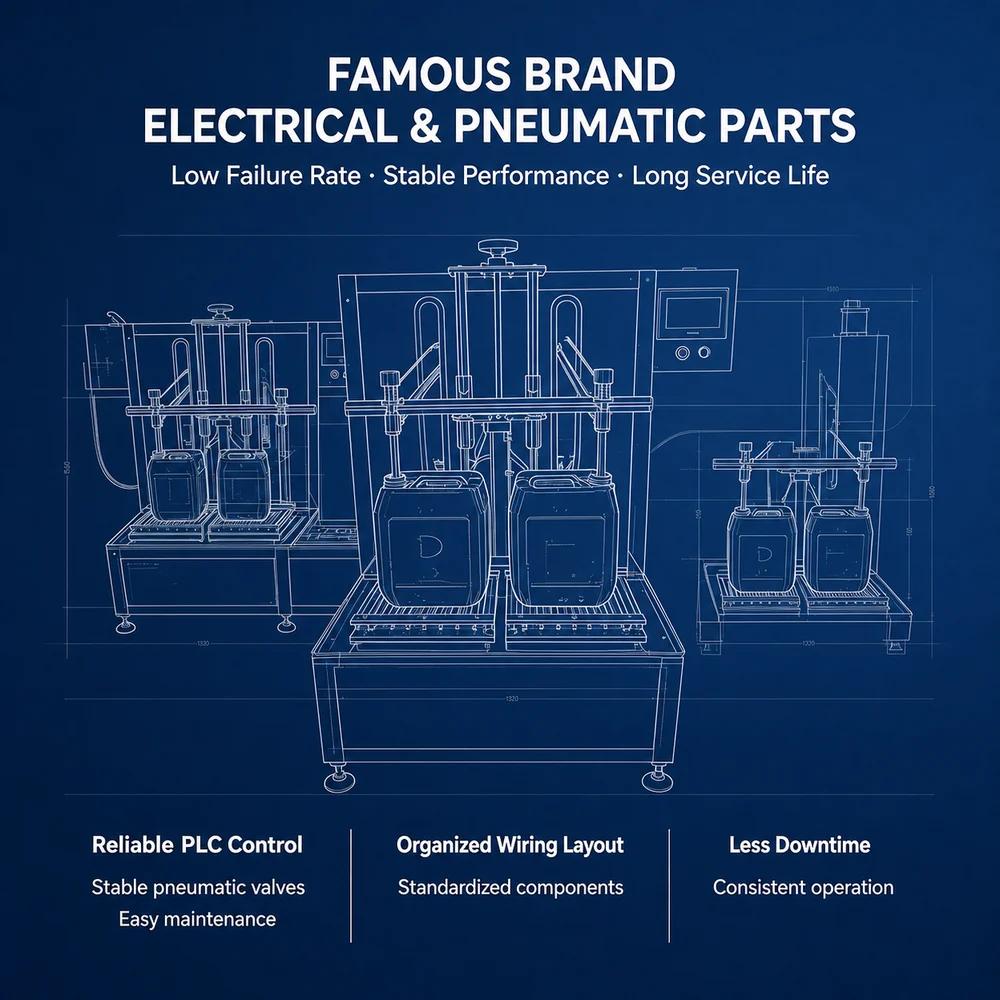

- Standardized components: Standard electrical and pneumatic parts simplify maintenance and help control operating costs.
- Fast container changeover: Different pail and drum sizes can be handled without replacing machine parts.
Especificações técnicas
| Nome do produto | 2-Head Corrosive Liquid Weigh Filling Machine |
|---|---|
| Intervalo de enchimento | 1-25 kg per container |
| Precisão do enchimento | ≤ ±0.5% |
| Capacidade de produção | 60-80 drums/hour (based on 18 L oil drums) |
| Potência | 1,5 kW |
| Working Voltage | 380 V, 50 Hz |
| Working Air Pressure | 0.5-0.7 kgf/cm² |
| Operating Temperature | -10°C to +45°C |
| Machine Material | PP corrosion-resistant cabinet; all liquid-contact parts use corrosion-resistant materials |

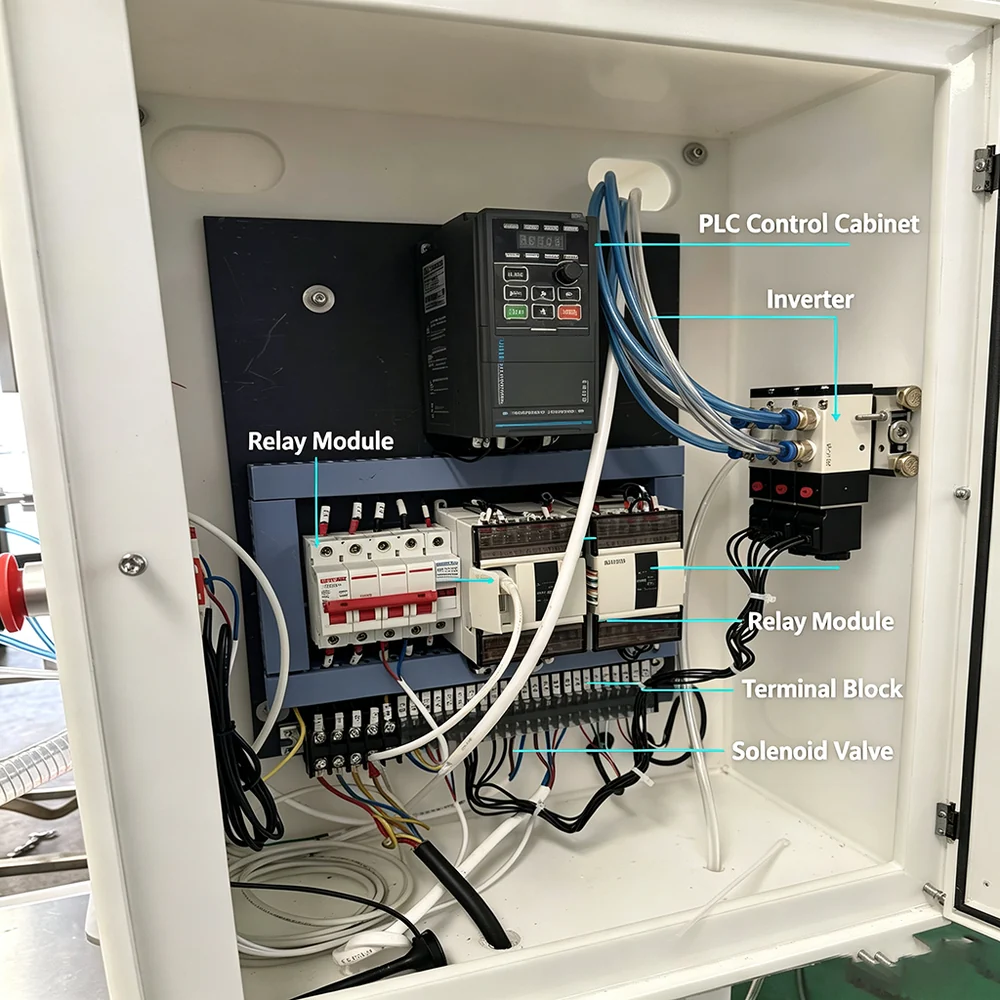

| Sistema de controlo | PLC + touch screen with gross-weight/net-weight mode switching |
| Filling Structure | Fast/slow dual-speed filling, anti-drip nozzles and optional diving filling heads |
| Applicable Containers | Plastic pails and drums; customizable for different container heights and diameters |
| Dimensões totais | 900 × 870 × 1700 mm |
| Peso da máquina | 150 kg |
| Líquidos aplicáveis | Acids, alkalis, pesticides, liquid fertilizer, detergents, hydrogen peroxide and water-treatment chemicals |
Aplicações adequadas
The machine is suitable for acids, alkaline liquids, pesticides, liquid fertilizers, detergents, hydrogen peroxide and water-treatment chemicals. Container supports and filling-head height can be customized for plastic pails and drums with different diameters and heights.
How the Weigh Filling Process Works
The container is positioned on the weighing platform. The PLC controls a fast filling stage followed by a slow topping stage until the target weight is reached. The operator can select gross-weight or net-weight mode according to the container and production process.
Perguntas frequentes
Can this machine fill foaming liquids?
Yes. Optional diving filling heads can fill from a lower position inside the container to reduce foam and splashing.
Can it handle different pail and drum sizes?
Yes. The machine can switch between multiple container specifications without replacing parts, and the structure can be customized for different heights and diameters.
Que informações são necessárias para obter um orçamento?
Please provide the liquid name, target filling weight, container dimensions, required output and whether gross-weight or net-weight operation is preferred.
Imagens do produto e detalhes da máquina
