Automatische Abfüllanlage für Erdnussöl in 1,8-Liter-Flaschen mit einem 10-Kopf-Schwerkraftfüller und Servo-Verschließvorrichtung
Automatic edible oil bottling line for 1.8L peanut oil bottles, configured with 10-head gravity filling, cap elevator, cap placing, servo capping and a 10-meter conveyor layout.
Angebot anfordern
Geben Sie die gewünschte Menge ein und fügen Sie den Artikel Ihrer Angebotsliste hinzu, um ein Preisangebot anzufordern.
Produktdetails
Automatic Peanut Oil Filling Line for 1.8L Bottles
This automatic peanut oil filling line was configured for an Indonesian edible oil customer filling 1.8L bottles. The line combines a 10-head gravity filling machine, automatic cap elevator, bottle clamping and cap placing section, servo capping machine and a 10-meter conveyor layout, giving the customer a practical complete bottling solution from filling to finished capped bottles.
The project is designed around the real needs of edible oil factories: stable filling volume, clean bottle necks, smooth bottle transfer and reliable cap tightening. For peanut oil and other cooking oils, the line uses servo diving filling. The filling nozzles move down into the bottle and rise during filling, helping reduce splashing, dripping and oil contamination around the bottle mouth.
Angebot anfordern if you need a peanut oil, palm oil, soybean oil, sunflower oil or blended cooking oil filling line for bottle packaging.
Maschinenvideo
https://youtube.com/shorts/eYmTJEMU1c0?feature=share
Project Background: Indonesia 1.8L Peanut Oil Bottling
The customer needed a complete line for 1.8L peanut oil bottles. Compared with small semi-automatic filling equipment, this line is built for continuous production where bottle feeding, filling, cap feeding, cap placement and capping need to work together on one conveyor. The 10-meter conveyor gives enough buffer length for bottle accumulation, operator checking and smooth connection between each station.
The system is suitable for medium edible oil factories that want to improve output without immediately moving to a large rotary filling line. It keeps the machine structure easier to maintain while still offering automatic filling and servo capping performance for commercial production.
Line Workflow
- Empty 1.8L bottles enter the conveyor and are guided into the filling station.

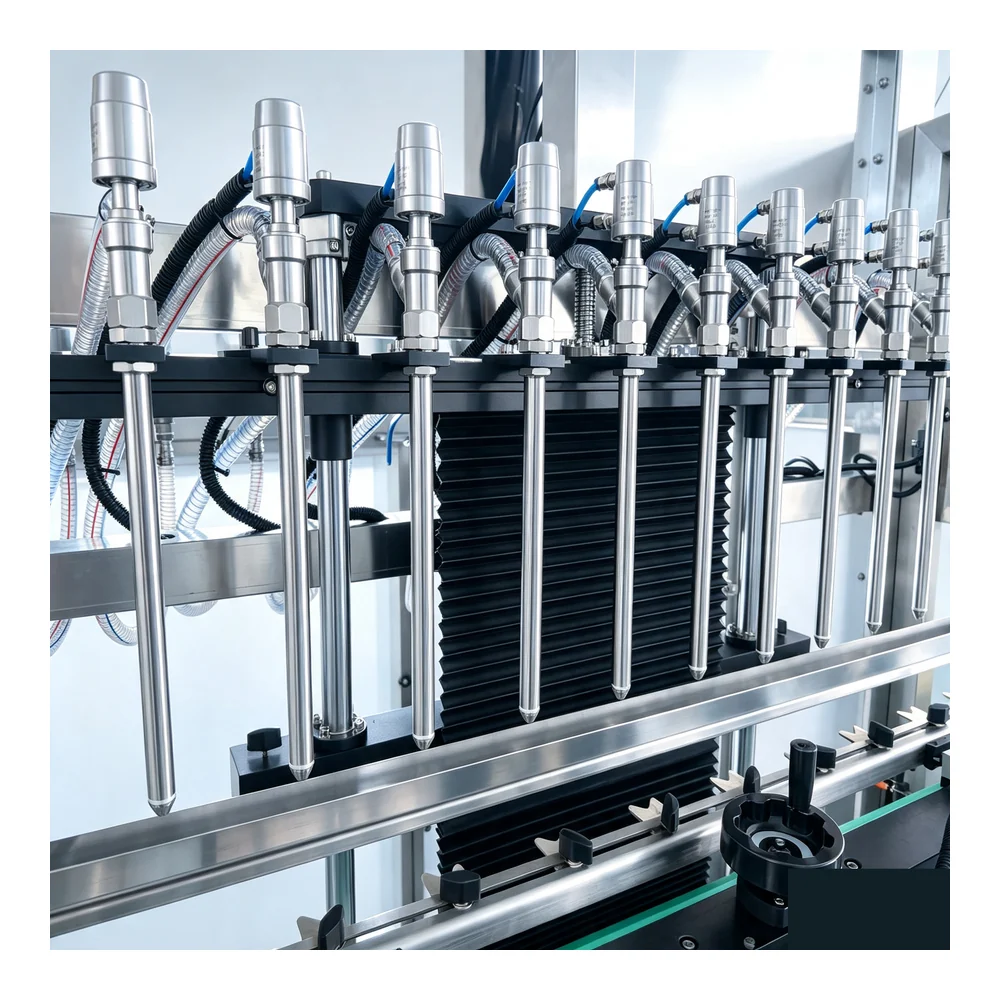

- The DT-1000 10-head gravity filling machine fills peanut oil with servo diving nozzle movement.

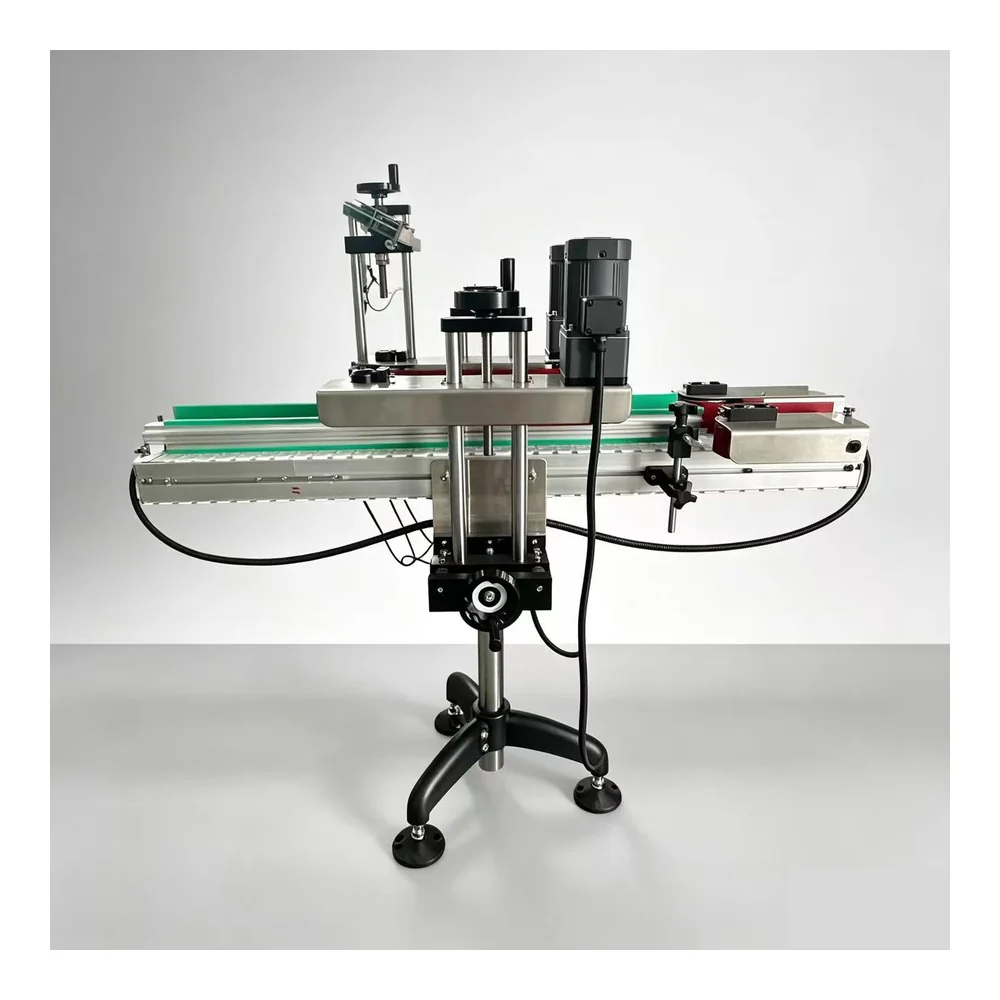

- Filled bottles move to the cap placing section, where caps are supplied by the automatic cap elevator.
- The bottle clamping belt stabilizes bottles before capping, improving cap alignment.
- The DT-GS860 servo capping machine tightens caps consistently before bottles exit the line.
Anwendungen
- Peanut oil bottling for 1L, 1.8L, 2L and similar edible oil bottle formats.
- Cooking oil filling lines for palm oil, soybean oil, sunflower oil, corn oil and blended vegetable oil.
- Food factories that require a clean automatic line with stainless steel contact parts and stable bottle handling.
- Regional edible oil brands in Indonesia, Southeast Asia, Africa and Middle East markets.
Wichtigste Merkmale
- 10-head gravity filling structure for edible oil bottle production.
- Servo diving filling movement to reduce splash, oil drops and dirty bottle necks.
- Automatic cap elevator and cap placing section reduce manual cap feeding work.
- Bottle clamping belt supports stable cap placement and servo capping.
- 10-meter conveyor layout gives better production flow and space for line connection.
- Suitable for peanut oil, palm oil, soybean oil, sunflower oil and similar free-flowing edible oils.
Angebot anfordern with your bottle volume, bottle shape, cap size, target speed and factory layout.
Machine Photos and Factory Layout
Technische Daten
Automatic 10-Head Gravity Filling Machine
| Modell | DT-1000 |
|---|---|
| Maschinentyp | Automatic 10-head gravity filling machine |
| Bottle Size | Configured for 1.8L peanut oil bottles |
| Abmessungen | 2000 x 1300 x 1950 mm |
| Spannung | 220V 50Hz AC |
| Leistung | 1 kW |
| Luftdruck | 5-8 kg |
| Air Consumption | 120 L/min |
| Abfüllgenauigkeit | 1% |
| Filling Speed | 20-50 bottles/min |
| Filling Motion | Servo diving lift filling for reduced splash and cleaner bottle necks |
Servo Capping Machine
| Modell | DT-GS860 |
|---|---|
| Maschinentyp | Servo capping machine |
| Spannung | 220V 50Hz |
| Leistung | 1,1 kW |
| Output | 40-80 bottles/min |
| Cap Diameter | 15-100 mm |
| Flaschenhöhe | 50-300 mm |
| Abmessungen | 1000 x 700 x 1500 mm |
Automatic Cap Elevator
| Modell | DT-GS680 |
|---|---|
| Maschinentyp | Automatic cap elevator |
| Spannung | 220V 50Hz |
| Leistung | 0.37 kW |
| Output | 40-60 bottles/min |
| Abmessungen | 1000 x 1000 x 2250 mm |
Line Configuration
| Project Product | 1.8L peanut oil bottles for an Indonesian customer |
|---|---|
| Main Modules | 10-head gravity filler, cap elevator, bottle clamping and cap placing section, servo capping machine and conveyor system |
| Total Conveyor Length | 10 meters |
| Suitable Products | Peanut oil, cooking oil, palm oil, soybean oil, sunflower oil, blended vegetable oil and similar edible oils |
Why This Line Is Suitable for Edible Oil Factories
Edible oil filling is different from water or beverage filling because oil can easily leave marks around the bottle neck and conveyor if filling is not controlled properly. The servo diving filling design helps the oil enter the bottle more smoothly. For factories selling bottled peanut oil or cooking oil in supermarkets and wholesale channels, cleaner bottles reduce rework and improve the final product appearance.
The line also keeps the main machines modular. The filler, cap elevator, capping machine and conveyor system can be adjusted according to bottle size and factory space. This makes it easier to configure the same basic line for different edible oil bottle sizes in the future.
Häufig gestellte Fragen
Can this line fill other edible oils besides peanut oil?
Yes. It can be configured for soybean oil, sunflower oil, palm oil, corn oil, blended cooking oil and similar free-flowing edible oils.
Is this line suitable for 1.8L bottles?
Yes. This project was configured for 1.8L peanut oil bottles. Other bottle volumes can be checked according to bottle dimensions and filling speed requirements.
Why use servo diving filling?
Servo diving filling helps reduce oil splashing, dripping and contamination around the bottle mouth, which is important for clean edible oil packaging.
Can the conveyor length be customized?
Yes. This project uses a total conveyor length of about 10 meters, and the conveyor layout can be adjusted according to the factory floor plan.
Can you add labeling or foil sealing after capping?
Yes. Labeling, aluminum foil sealing, bottle unscrambling and carton packing can be added depending on the complete production line requirement.
Verwandte Lösungen
For more complete projects, view our Speiseölfabrik solutions and Ölbefüllanlagen.
Angebot anfordern
Send us your bottle sample, cap size, product viscosity, target production speed and factory layout. Longteng Machinery can recommend the correct filling heads, capping structure, conveyor layout and optional labeling or sealing machines for your edible oil factory.
