Automatic Granule Packaging Machine for Nuts, Seeds, Rice and Spices with Rotary Measuring Cup
Cost-effective vertical granule packing machine with rotary measuring cup dosing for nuts, seeds, rice, cereal, sugar, coffee granules, spices and other free-flowing granular products.
Angebot anfordern
Geben Sie die gewünschte Menge ein und fügen Sie den Artikel Ihrer Angebotsliste hinzu, um ein Preisangebot anzufordern.
Produktdetails
Automatic Granule Packaging Machine for Nuts, Seeds, Rice and Spices
Cost-effective vertical granule packing machine with rotary measuring cup dosing for nuts, seeds, rice, cereal, sugar, coffee granules, spices and other free-flowing granular products.
This rotary cup filling automatic packing machine is designed for granular food materials that need stable weighing, automatic bag forming, sealing, cutting and counting in one continuous workflow. The rotary measuring cup system is simple to adjust, easy to clean and suitable for factories that need practical output without a complicated weighing system.
Angebot anfordern

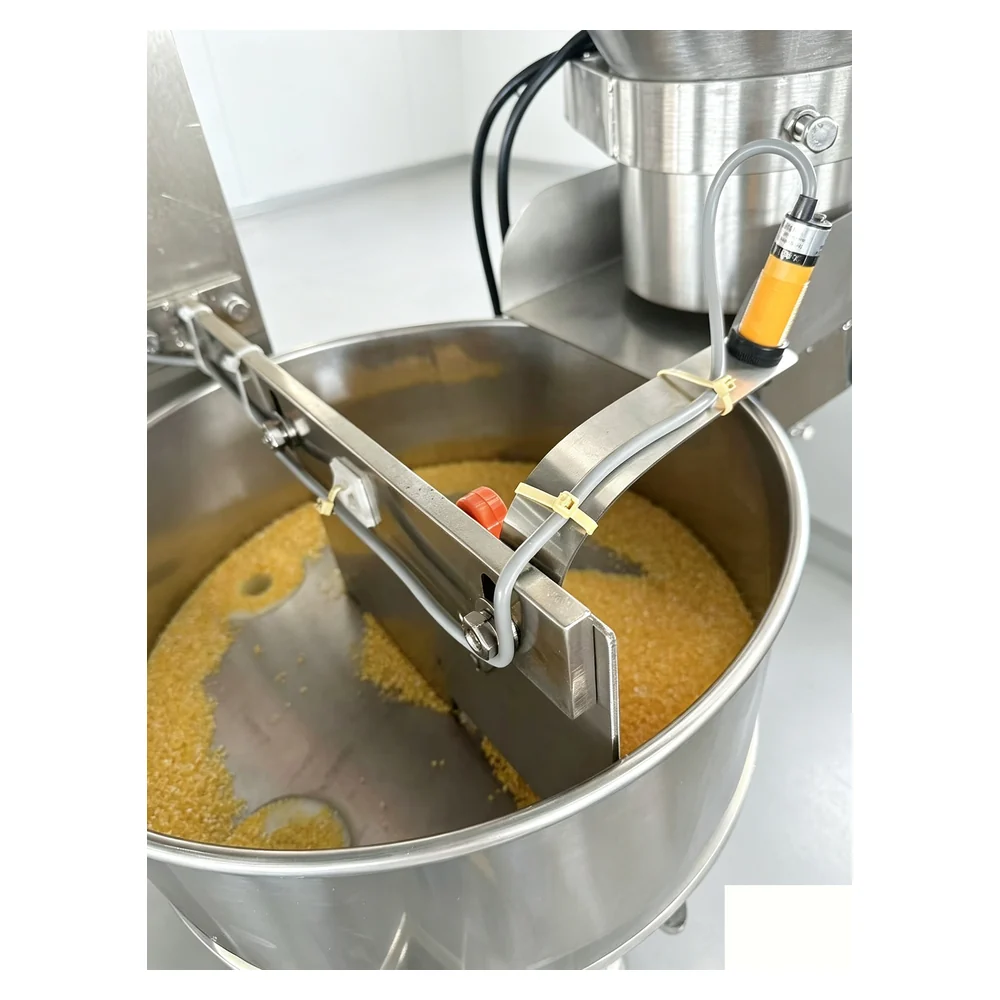

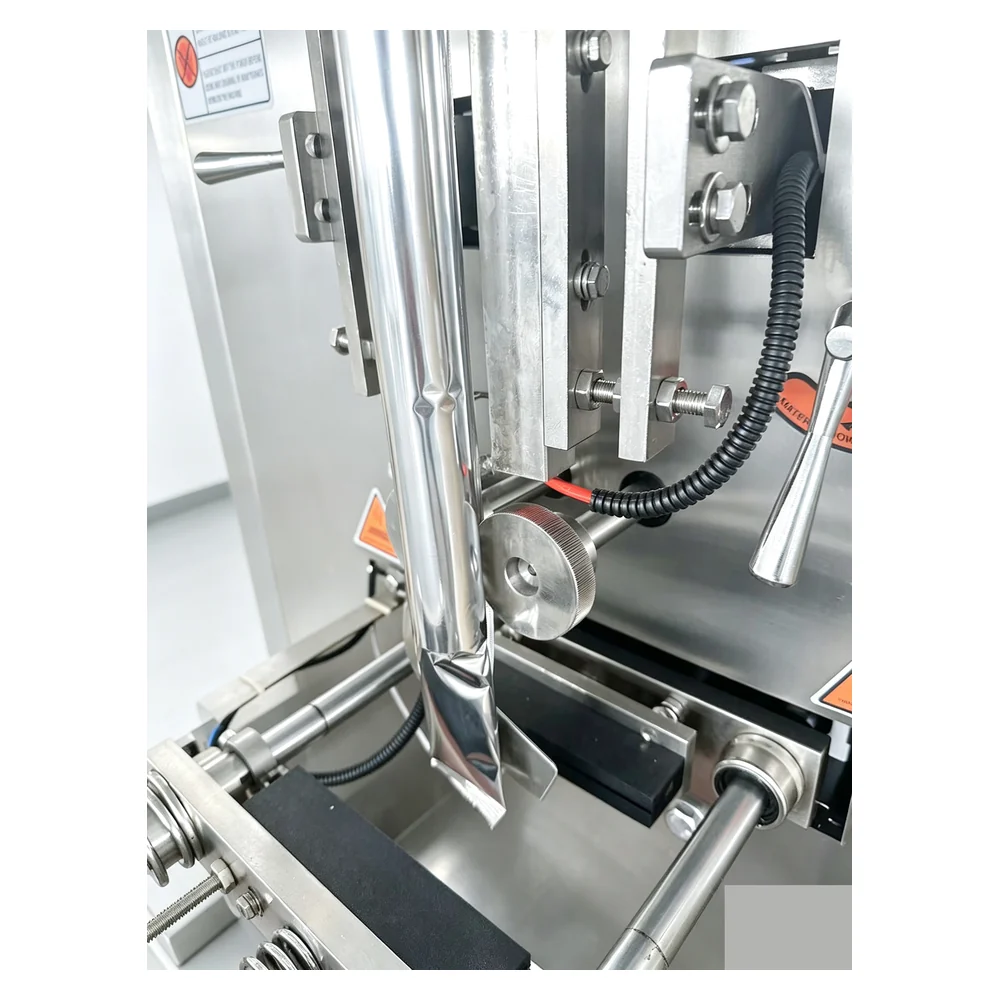

Maschinenbilder
Geeignete Materialien
- Nuts and seeds: peanuts, cashews, almonds, walnuts, melon seeds and pistachios.
- Grains and breakfast products: oat flakes, cereal grains, corn kernels and rice-type granular products.
- Granular ingredients: coffee granules, crystal sugar, white granulated sugar and similar free-flowing products.
- Spices and seasonings: pepper granules, cumin grains and seasoning particles.
Core Features

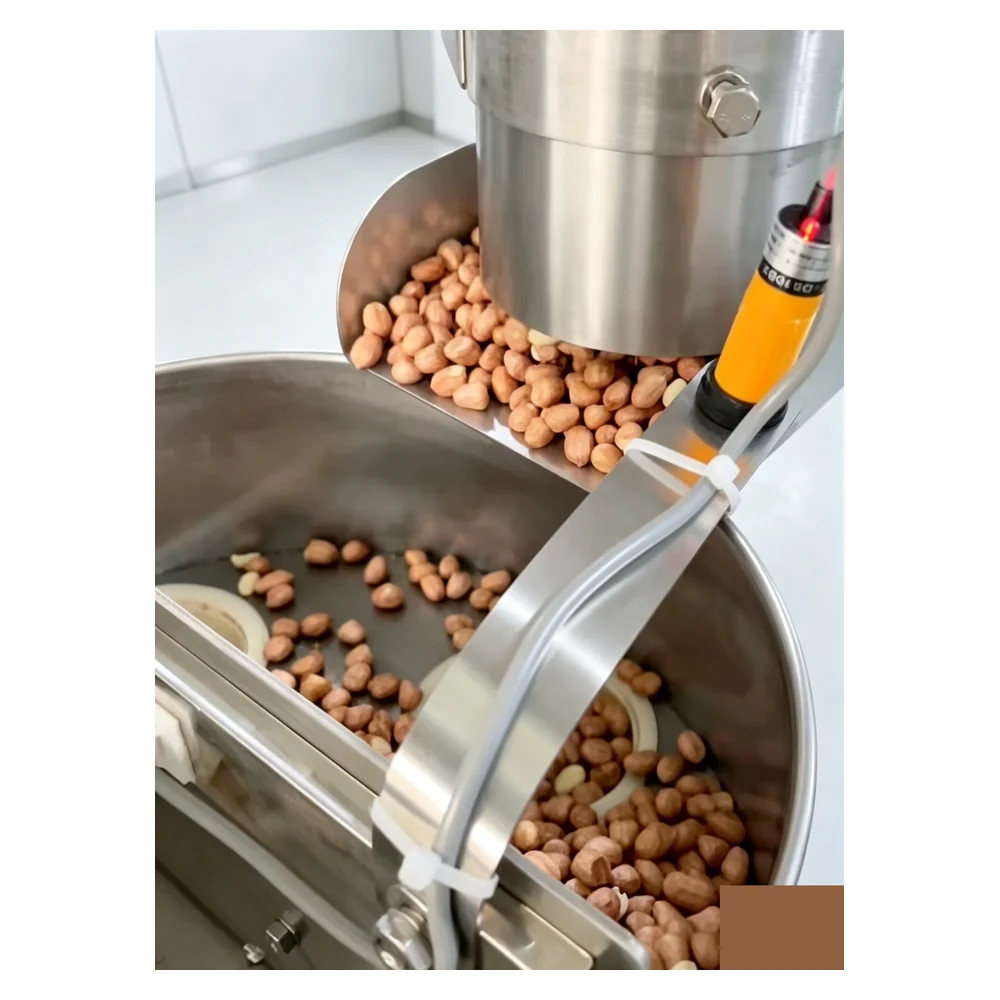

- Rotary measuring cup dosing design, easy to replace different cup sizes for different filling weights.
- Automatic feeding, measuring, bag forming, sealing, cutting and counting in one compact vertical machine.
- Food-contact parts can be made with 304 stainless steel for easy cleaning and reduced cross-contamination.
- Supports multi-layer composite film, plastic film and paper film packaging bags.
- Touch screen control for bag length, speed and sealing temperature adjustment.
- Optional date coder and color mark sensor for printed film packaging.
Angebot anfordern
Technische Daten
| Spezifikation | BF-300A3 | BF-400A3 | BF-500A |
|---|---|---|---|
| Sealing Type | Side seal / back seal | Side seal / back seal | Side seal / back seal |
| Film Width | 50-300 mm | 50-400 mm | 50-500 mm |
| Bag Length | 10-200 mm | 10-280 mm | 10-350 mm |
| Verpackungsgeschwindigkeit | 30–50 Beutel/Min. | 30–50 Beutel/Min. | 10-25 bags/min |
| Messbereich | 1-100 g, custom measuring cup | 1-100 g, custom measuring cup | 500-1000 g, custom measuring cup |
| Stromversorgung | 220V / 50HZ / 1.5KW | 220V / 50HZ / 1.5KW | 220V / 50HZ / 1.5KW |
| Maschinengewicht | 250 kg | 250 kg | Depends on final configuration |
| Maschinenabmessungen | 1150 x 750 x 1850 mm | 1150 x 750 x 1850 mm | 1200 x 950 x 1950 mm |
Optionale Geräte

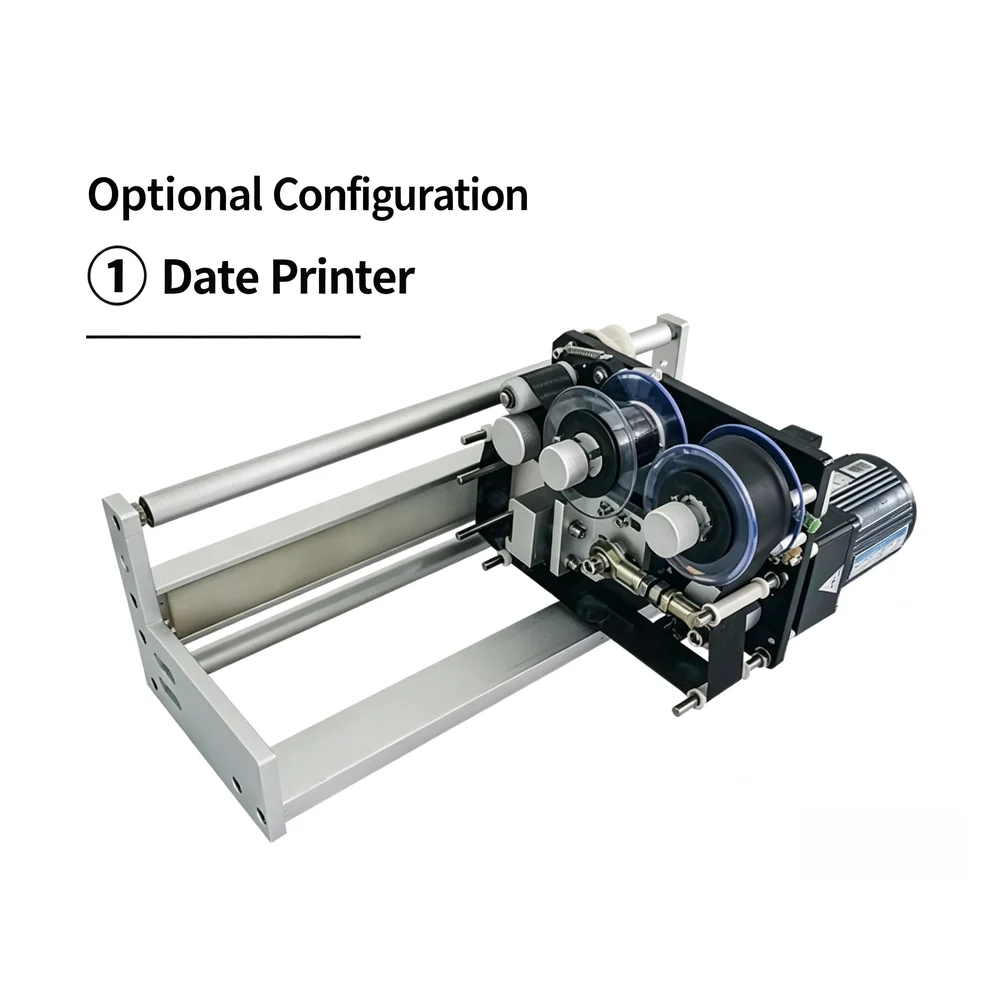

- Date coding machine for production date, batch number or expiry date printing.

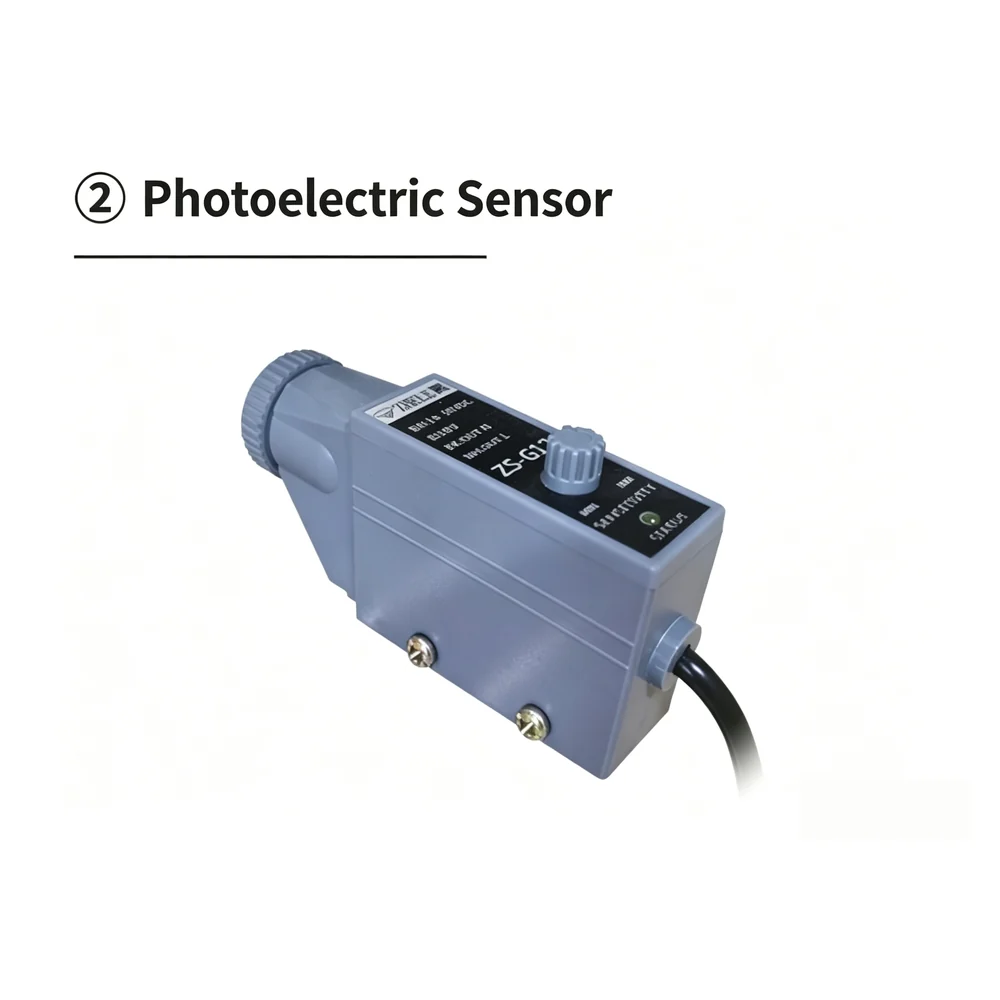

- Color mark sensor for printed film tracking and accurate bag cutting position.
- Customized measuring cups according to target filling weight and material flow condition.
Häufig gestellte Fragen
Can this machine pack different granular products?
Yes. The measuring cup can be customized or replaced according to material size, flowability and target weight.
Is it suitable for nuts and seeds?
Yes. It is commonly used for peanuts, melon seeds, cashews, almonds and similar granular snack products.
Can it use printed packaging film?
Yes. A color mark sensor can be added for printed film tracking and accurate cutting position.
Which model should I choose?
BF-300A3 and BF-400A3 are suitable for smaller bags and 1-100 g dosing. BF-500A is better for larger bag sizes and 500-1000 g packages.
