2.4G/5.2G/5.8G Signal Booster Antenna

Applications

FPV Signal Booster

Drone Signal Extender

Features

Maximum output power 10W

Ultra-large capacity battery, 6400mAh

2.4G/5.2G/5.8G Tri-band dual-port working at the same time, free switching

All-aluminum shell, better cooling effect

Parameters

Number Items Specifications
1 Frequency Range 2400-2500MHz 5150-5850MHz
2 Max Output Power 40dBm(10W) 40dBm(10W)
3 Antenna Gain 15dB±1 18dB±1
4 Battery Capacity 6400mAh
5 Receiving Gain 16dB±1 16dB±1
6 Transmission Gain: 18dB±1 18dB±1
7 Input Trigger Power Min:3dBm Max:23dBm Min:3dBm Max:23dBm
8 EVM 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz 3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz
9 Noise Figure ＜2.5dB ＜2.5dB
10 Current Supply 2.2A@Pout 40dBm 12V 2.2A@Pout 40dBm 12V
11 TX/RX Switch Time Delay ＜1 us
12 Charging Voltage 22V/1.2A
13 RF Connector N
14 Operating Temperature -30℃～+70℃
15 Storage Temperature -40℃～+150℃
16 Operating Humidity Up to 95% rel. humidity
17 Shell Size (mm)
18 Shell Material Aluminum
19 Net Weight Kg



]]> ../../product/multi-band-drone-signal-booster/feed/index.html 0 GAN 100W Digital Source Signal Amplifier Module with Circle Protection ../../product/gan-100w-digital-source-signal-amplifier-module-with-circle-protection/index.html ../../product/gan-100w-digital-source-signal-amplifier-module-with-circle-protection/index.html#respond Tue, 09 Dec 2025 07:02:04 +0000 ../../index__q6bf08ea7.html comprehensive protection circuit. Drawing on proven protection schemes for GaN devices, it effectively guards against multiple potential risks including overheating, overcurrent, and voltage transients (dV/dt), thereby safeguarding both the amplifier module itself and connected equipment. This significantly enhances the overall system's reliability and operational lifespan. LST prioritizes product reliability above all. Our precise manufacturing processes and stringent quality controls ensure that every module delivers consistently excellent performance, which has earned us the long-term trust of customers worldwide.  ]]> GAN 100W Digital Source Signal Amplifier Module with Circle Protection

This module has 100W high power output, It ensure that the signal has sufficient strength during transmission to achieve long-distance transmission and effective coverage, GAN 100W Digital source signal amplifier Module with Circle Protection widely used in wireless communication base stations, satellite communication ground stations and other communication equipment, it can amplify digital source signals to sufficient power.



Product specification

No. Item Data Unit
1 Frequency Customized MHZ
2 Test voltage 24-28 V
3 Current 4 A
4 Output 100 W
5 Gain 50 dB
6 Output stability 1 dB
7 Connector N/Female
8 Output connector N-end
9 Material aluminium
10 Power supply wire Red+Black+Enable wire
11 Enable Control High ON Low Off
12 Out shell Size 174*58*23 mm
13 Mount hole 174*68 mm
14 Weight 550 g
15 Work Temperature -40~+65 ℃
16 Out shell material Aluminum
17 Vibration need Car load OK



]]> ../../product/gan-100w-digital-source-signal-amplifier-module-with-circle-protection/feed/index.html 0 Anti-UAV 90W High Power Module with Circle Protect ../../product/anti-uav-90w-high-power-module-with-circle-protect/index.html ../../product/anti-uav-90w-high-power-module-with-circle-protect/index.html#respond Tue, 09 Dec 2025 06:59:24 +0000 ../../index__qeed4ddd1.html Anti-UAV 90W High Power Module with Circle Protect

This Anti-UAV 90W High Power Module with Circle Protect featuring circular protection, is ideal for crucial settings like military zones, airports, nuclear power plants, and large – scale event security. LST, a renowned professional module manufacturer and supplier in China, guarantees a worry – free purchase. Our factory provides excellent after – sales service and prompt delivery, ensuring a seamless buying experience for you.

Anti-UAV 90W High power module with circle protect

Boasting a robust 90W power output, this module excels at interfering with the communication and navigation systems of drones over an extended range. It can effectively disrupt signals, making drones lose control or compelling them to land. The Anti-UAV 90W High – power module with circular protection features a distinctive ring – shaped structure. It offers substantial physical protection against external collisions, impacts, and the harsh effects of the environment. Moreover, it comes with an electromagnetic shielding function, enhancing its overall performance and reliability.



Product specification

No. Item Data Unit
1 Frequency Customized MHz
2 Test voltage 28 V
3 Current 3.7 A
4 Output 90 W
5 Gain 49 dB
6 Output stability 1 dB
7 Connector N/ Female
8 Output connector VSWR ≤1.30  (No power and VNA test)
9 Power supply wire Red+Black+Enable wire
10 Enable Control High ON Low Off
11 Out shell Size 130*55*24 mm
12 Mount hole 125*50 mm
13 Weight 370 g
14 Work Temperature -40~+65 ℃
15 Out shell material Aluminum
16 Vibration need Car loadOK

]]> ../../product/anti-uav-90w-high-power-module-with-circle-protect/feed/index.html 0 New Design 400-700MHz Dual- Bands Anti -Drone Module 50W ../../product/new-design-400-700mhz-dual-bands-anti-drone-module-50w/index.html ../../product/new-design-400-700mhz-dual-bands-anti-drone-module-50w/index.html#respond Tue, 09 Dec 2025 06:52:43 +0000 ../../index__q663d29e2.html New Design 400-700MHz Dual- Bands Anti -Drone Module 50W

The module supports customized configuration of N-type or SMA interface, is compatible with directional/omnidirectional antenna systems, and has built-in overvoltage and overcurrent protection circuits, suitable for integration into vehicle-mounted, fixed-station and portable devices. LST is a professional New Design 400-700MHz Dual- Bands Anti -Drone Module 50W manufacturer and supplier in China. If you interested in jammer module products, please contact with us.

Product specification

No. Item Data Unit
1 Frequency 400-700 MHz
2 Test voltage 28 V
3 Current 4.2 A
4 Output 50 W
5 Gain 47 dB
6 Output stability 1 dB
7 Connector SMA / Female
8 Output connector VSWR ≤1.30   (No power and VNA test)
9 Power supply wire Red+Black+Enable wire
10 Enable Control High ON Low Off
11 Out shell Size 169*70*21mm mm
12 Mount hole 160*64 mm
13 Weight 541 g
14 Work Temperature -40~+65 ℃
15 Out shell material Aluminum
16 Vibration need Car loadOK

]]> ../../product/new-design-400-700mhz-dual-bands-anti-drone-module-50w/feed/index.html 0 GAN 50W Power Amplifier Module with Circle Protection ../../product/gan-50w-power-amplifier-module-with-circle-protection/index.html ../../product/gan-50w-power-amplifier-module-with-circle-protection/index.html#respond Tue, 09 Dec 2025 06:48:29 +0000 ../../index__q67eb3d45.html This GaN 50W Power Amplifier Module is an information security module specially designed to block the transmission of UAV image transmission/remote control signals. This module has an average output power of 47dBm (50W), and boasts advantages such as sufficient power, good in-band flatness, and small upper and lower sideband offset. Moreover, the module circuit board fully adopts the manufacturing process of 4-layer high-frequency hybrid pressure plate and the electroplating process of full-board gold immersion. The product is equipped with a running indicator LED light, and its high-efficiency frequency-sweeping interference.

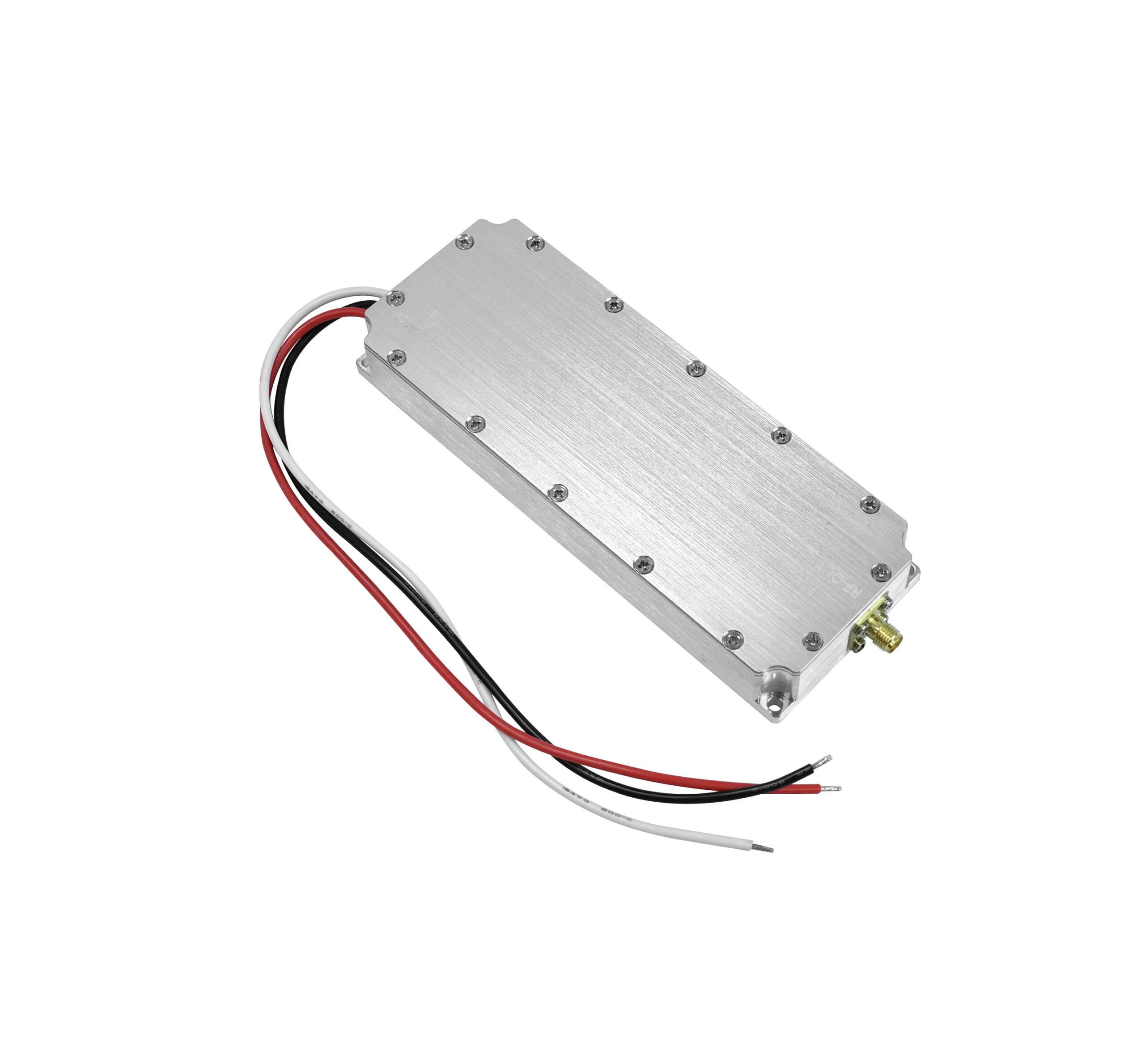

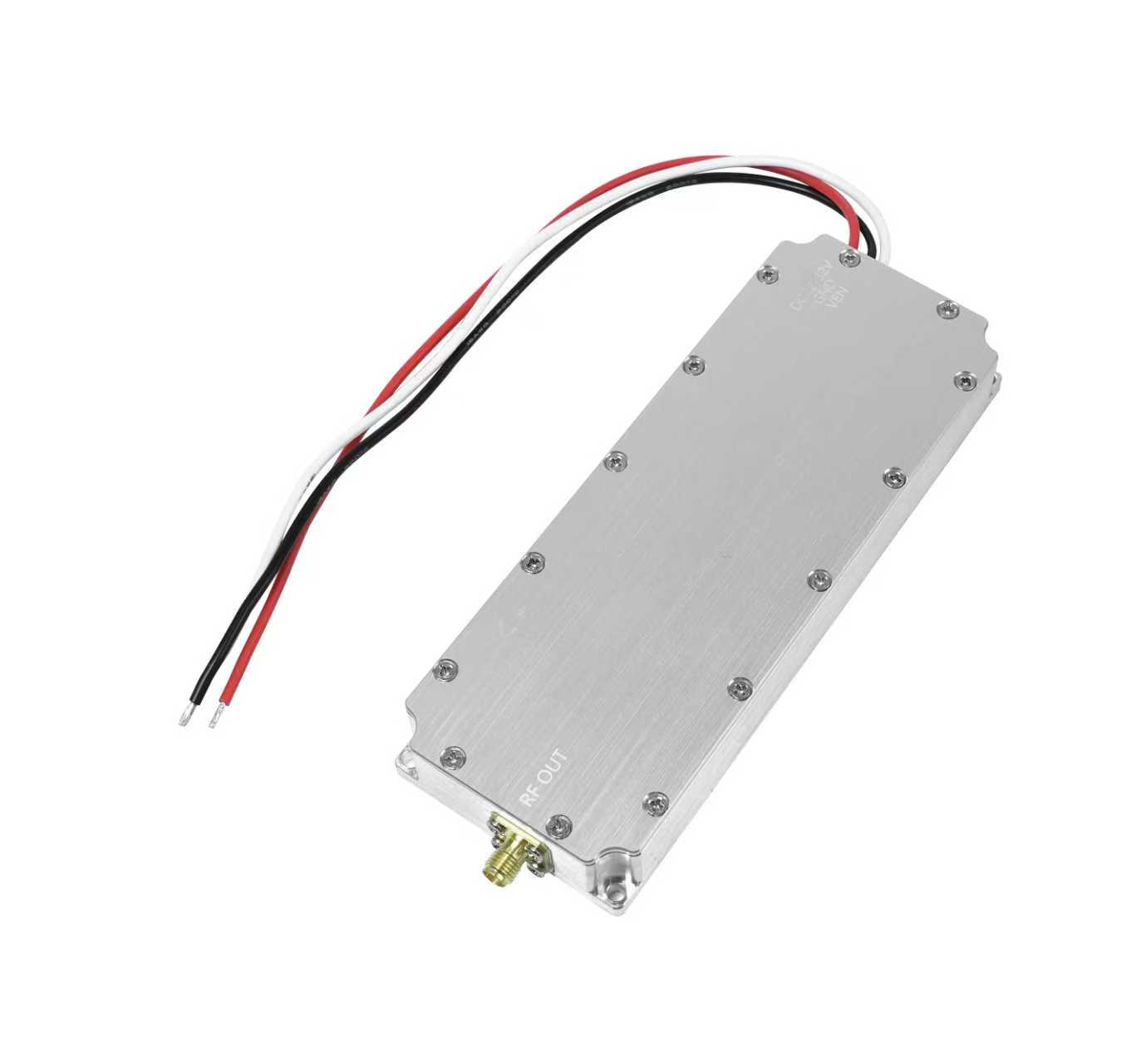

GAN 50W power amplifier module with circle protection specificatio

No. Item Data Unit
1 Frequency Customized MHz
2 Test voltage DC28 V
3 Current 4 A
4 Output 50 W
5 Gain 47 dB
6 Output stability 1 dB
7 Connector SMA / Female
10 Power supply wire Red+Black+Enable wire
11 Enable Control High ON Low Off

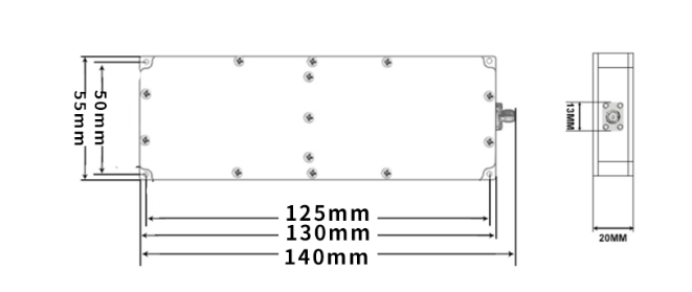

12 Out shell Size 140*53*18 mm mm
14 Weight 239 g
15 Work Temperature -30~+70 ℃
16 Out shell material Aluminum
17 Standing Wave Protection OK

]]> ../../product/gan-50w-power-amplifier-module-with-circle-protection/feed/index.html 0 Orientation Detection Jamming Equipment ../../product/orientation-detection-jamming-equipment/index.html ../../product/orientation-detection-jamming-equipment/index.html#respond Tue, 09 Dec 2025 06:44:53 +0000 ../../index__q6b0ba5bd.html Product Introduction

The high-power directional fixed UAV countermeasure system features straightforward operation and single-frequency control functionality. Employing narrowband jamming technology and radio frequency (RF) suppression technology, the equipment disrupts the communication link between the unmanned aerial vehicle and its ground control station, imposing a mandatory return-to-launch-site command on the UAV. Post-regulation, the UAV’s video transmission link is disabled, resulting in the loss of capability to transmit video footage and aerial photography, as well as to receive any control instructions from terrestrial operators. This realizes the protection of critical areas and the prevention of privacy disclosure.



Function Parameter
Working frequency 433M （ 420-440MHz ） 、 800M

（ 800-890MHz ） 、 900M （ 890M-960MHz ） 、 1.8G

（ 1800-1920MHz ） 、 2.4G （ 2400-2500MHz ） 、 5.2G

（5150-5350MHz）、5.8G（5725-5850MHz）
Coverage 1000~1500 meter, depends on real environment
Weight 35kg
Interference mode Drive away/Emergency landing
Work time 24 hours (duration)
Product Size 500*480*280mm
device form factor stationary installation
jamming coverage angle

60°


Power Consumption ＞2000W
Power Input AC 220V



]]> ../../product/orientation-detection-jamming-equipment/feed/index.html 0 Portable Drone Signal Jammer ../../product/portable-drone-signal-jammer/index.html ../../product/portable-drone-signal-jammer/index.html#respond Tue, 09 Dec 2025 06:41:53 +0000 ../../index__q196f39f8.html Portable Drone signal jammer is compact, lightweight, and easy to carry, and can be put into a backpack or suitcase to deal with drone threats anytime and anywhere. The built-in high-performance battery provides long battery life to meet users’ needs in different scenarios. It can be used in homes, offices, hotels, and other places to prevent illegal drone filming and surveillance.

Portable Drone Signal Jammer Specification

Product Type Portable drone jammer
JammingRange About 1000-1500 meter radius (OMNI antenna)

About 1500-2000 meter range (Panel antenna)

(according to the real environment )
Working Channels Customized 6 channel
Total Output Power >300W
Body Size 33*30*22 CM
Body Weight 10.45kg
Outer Antenna High gain Antenna
Working Temperature -20℃~75℃
Working Humidity 35~95%
Power Consumption < 720W
Power Input 1 AC100V~240V
Power Input 2 DC24V
Built-in Battery Customized
Battery Lasting Time 40-50 minute



How to Operate

* Please connect the antenna to the jammer by the according number(or it will be short wire if the number is not connected accordingly)

* Please full charge the built-in battery before use by AC charger(or use the DC wire connect your own 24V external battery )

*Press the on/off button to start the jamming work

* Press the needed frequency buttons on the remote control to start the Jamming function

* The drone will be interfered immediately in 1-3 second in the effective area 1000-1500 meter radius (depends on the use antenna type an the real environment )

]]> ../../product/portable-drone-signal-jammer/feed/index.html 0 5 band Handheld Shield Jammer ../../product/5-band-handheld-shield-jammer/index.html ../../product/5-band-handheld-shield-jammer/index.html#respond Tue, 09 Dec 2025 06:39:26 +0000 ../../index__q88dd608a.html This 5 band handheld Shield jammer adopts a handheld design, which is light and easy to carry. No matter where you are, you can deal with signal interference problems at any time. And this jammer can be operated with one button, without professional knowledge, you can easily deal with various signal interference problems.

Specification

Model Number TX-WRJ03
Jamming Range 1500-2000 meter, according to the real application environment
Jamming Signal 860-930MHz       output 10W

1550- 1620MHz    output 10W

2400-2483MHz    output 40W

5150-5250MHz    output 20W

5725-5850MHz    output 20 W

(Customized)
Output Power 100W
Product Size 337*228*26mm
Product Weight 4.35 kg
Effective Angle 30°
Out shell Material Aluminum Alloy+ABS plastic
Battery Duration time 40-50 minute
Work Temperature -20℃~55℃
Work Humidity 35~85%
Power Consumption ≤240W
DC Power 24V/10A
AC Power Input AC29.4V

]]> ../../product/5-band-handheld-shield-jammer/feed/index.html 0 Man Pack 360 Degree 2000 Meter Anti Drone Uav Signal Blocker ../../product/man-pack-360-degree-2000-meter-anti-drone-uav-signal-blocker/index.html ../../product/man-pack-360-degree-2000-meter-anti-drone-uav-signal-blocker/index.html#respond Tue, 09 Dec 2025 06:37:15 +0000 ../../index__q50ec8355.html The following is an introduction to Man pack 360 degree 2000 meter anti drone UAV signal blocker, LST hope to help you better understand Man pack 360 degree 2000 meter anti drone UAV signal blocker. Welcome new and old customers to continue to cooperate with us to create a better future together!

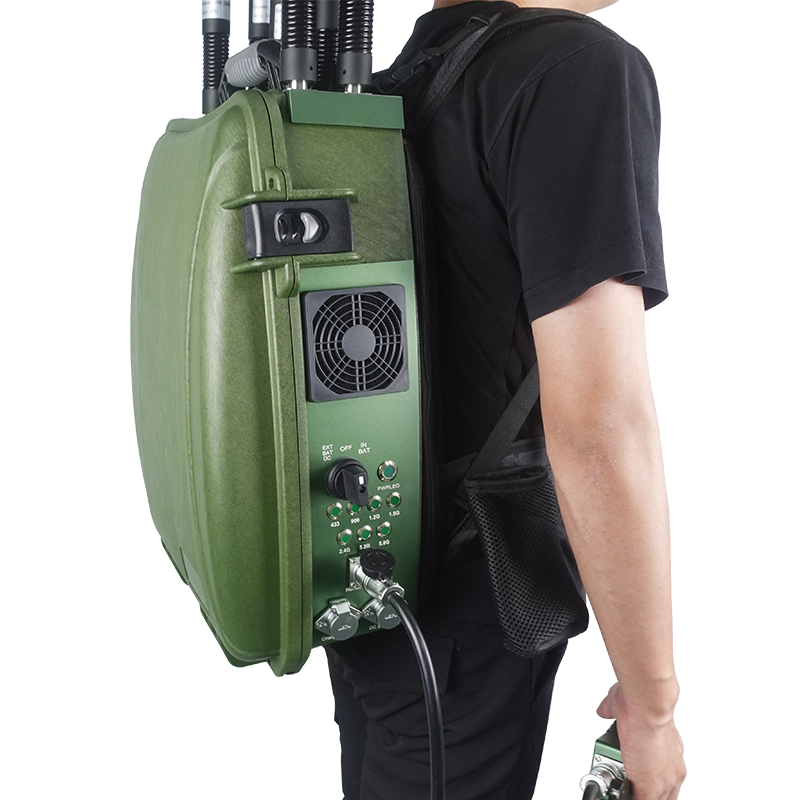

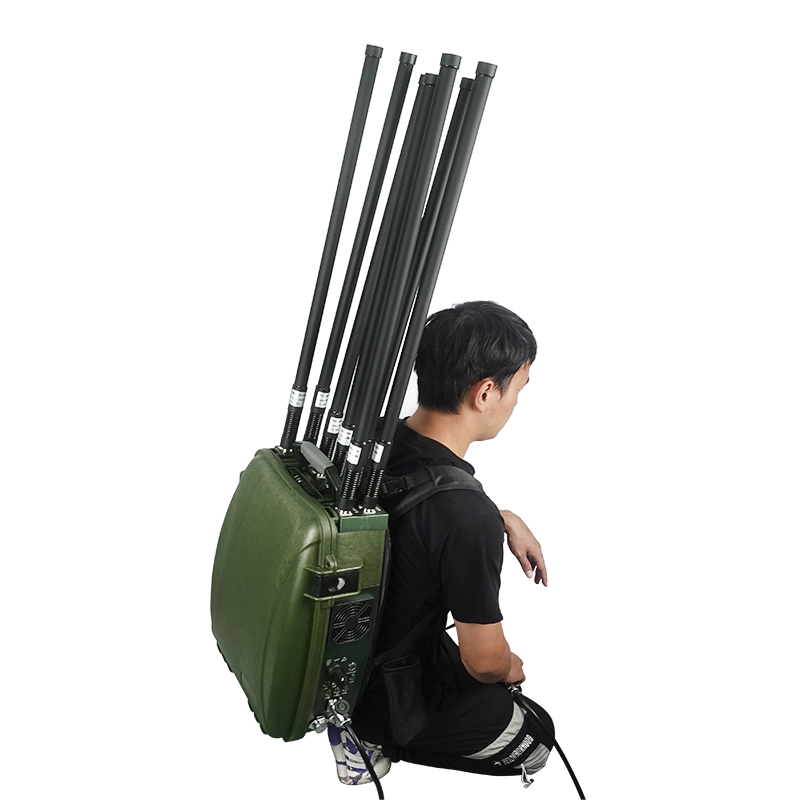

Man pack 360 degree 2000 meter anti drone UAV signal blocker

Anti Drone Signal Blocker Introduction

TX-BF05 Man pack anti drone signal blocker will disrupt the drone by its transmission, including the WIFI2.4G, WIFI5.8G, also the GNSS, GPS, GLONASS, or other customized signal within the effective range over 1500 meter radius. Te Xin develops this anti drone signal blocker by forcing the drone return home or land immediately in 3-5 seconds. Our factory will totally improve the drone jamming product by the customer feedback and real reflection from end customers.

Anti Drone Signal Blocker Specification

Name Man pack Anti drone Signal blocker
Model TX-BF05
Channels 5 to 7 Channel
Output Power Over 300W
Working frequency 1100-1300MHz
1560-1620MHz
868-915MHz
2400-2500MHZ
5725-5850MHZ（Customized）
Coverage 1000~1500 meter, depends on real environment
Antenna Optional:
type A: OMNI directional Fiberglass Antennas
type B: directional Panel Antennas
Transimit power Customized
Control mode landing or expelling
Battery Endurance 60~90mins
Net Weight 15.8KG, Packing Weight:20kg
Product Size 488 x 369x 147mm
Quality Warranty 12 Months

Anti Drone Signal Blocker Advantage

*Anti drone man pack signal blocker

*Over7 Band Customized

* Built-in Battery that work 1-2 hour operating

* Man-pack Raining proof case

* AC charge interface

*Remote control:Single channel Switch on/offwith remote control

Anti Drone Signal Blocker Packing list

> Man pack signal blocker

> Optional Antenna: directional panel antenna or OMNI directional antenna

> AC charger *1piece

]]> ../../product/man-pack-360-degree-2000-meter-anti-drone-uav-signal-blocker/feed/index.html 0 Solid Latest Anti Drone UAV Gun 8 band 200W Signal Jammer ../../product/solid-latest-anti-drone-uav-gun-8-band-200w-signal-jammer/index.html ../../product/solid-latest-anti-drone-uav-gun-8-band-200w-signal-jammer/index.html#respond Tue, 09 Dec 2025 06:32:58 +0000 ../../index__qb5056924.html
  • Latest Model & Solid-State Design: A next-generation, reliable anti-drone gun from LST Jammer Factory.
  • Proven Evolution: Enhanced over 5 years based on practical field experience and user feedback.
  • Powerful Performance: Features 8 independent jamming bands and 200W output power.
  • Comprehensive Coverage: Capable of countering the vast majority of consumer and commercial drones available.
    • ]]>     Solid Latest Anti Drone UAV Gun 8 band 200W Signal Jammer

    The LST anti drone and UAV defense is developed based on the old drone guns and the new and actual need in the market. It is a powerful contermeasures for the intruding drone and its remote control. It can force the drone leave home or land up to 2.5KM.

    Anti Drone UAV Gun Jammer Specification

    Model No. TX-T08 anti droneUAV Gun Jammer
    Size 820*300*80mm
    Weight 6.45kg
    Effective Range 2000-2500 meter,depends on real environment



    Anti Drone UAV Gun Jammer advantage

    >Hight output over 200W

    >Longer range max 2.5KM

    >2pcs Replaceble battery

    >Usually 433MHz+900MHz+1.2G+1.4G+1.5G+2.4G+5.2G+5.8G

    >Light weight 6.45KGs
