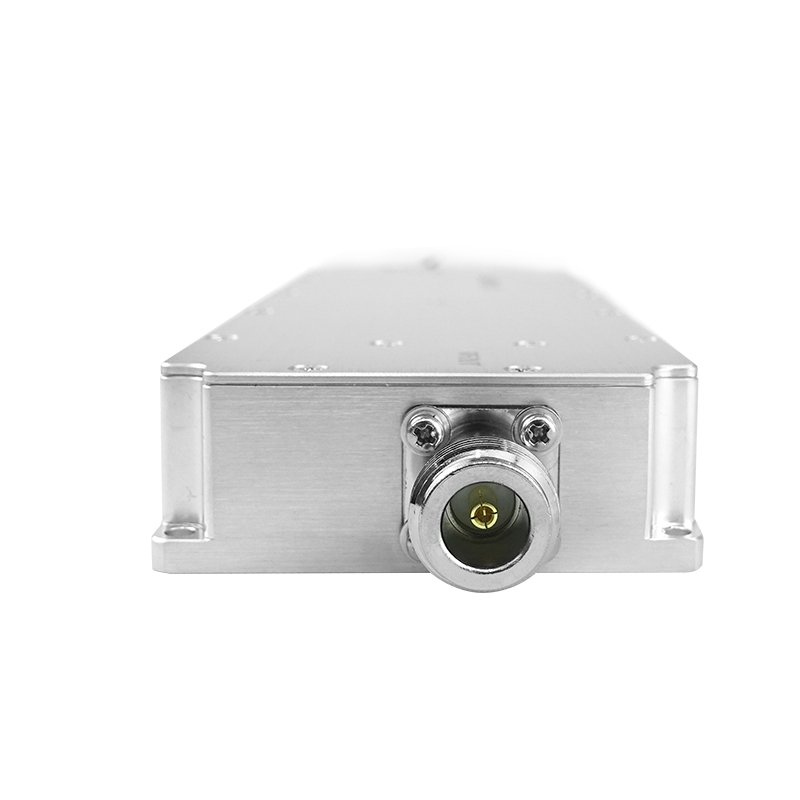

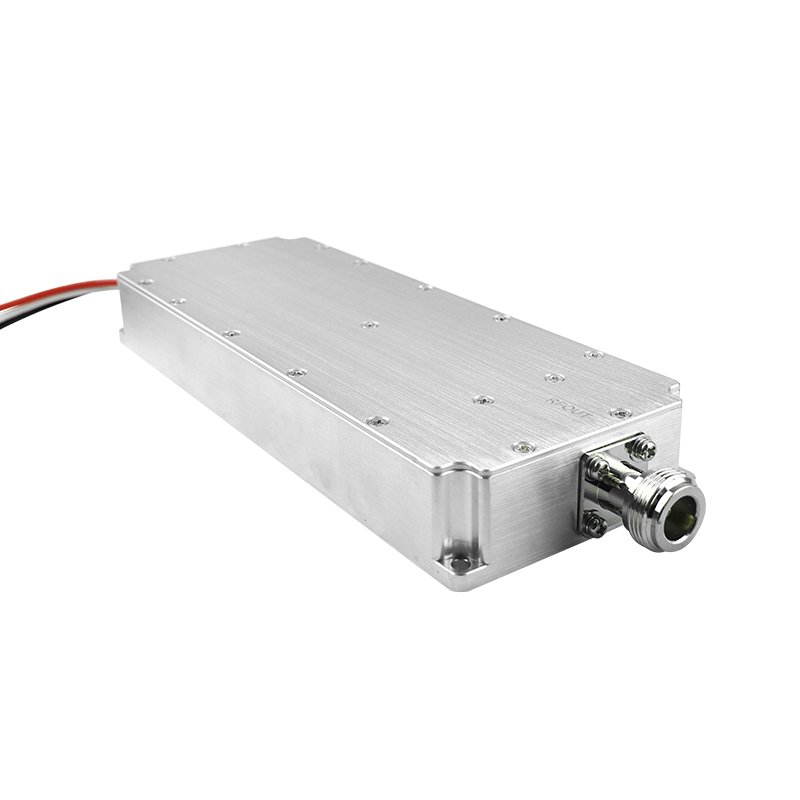

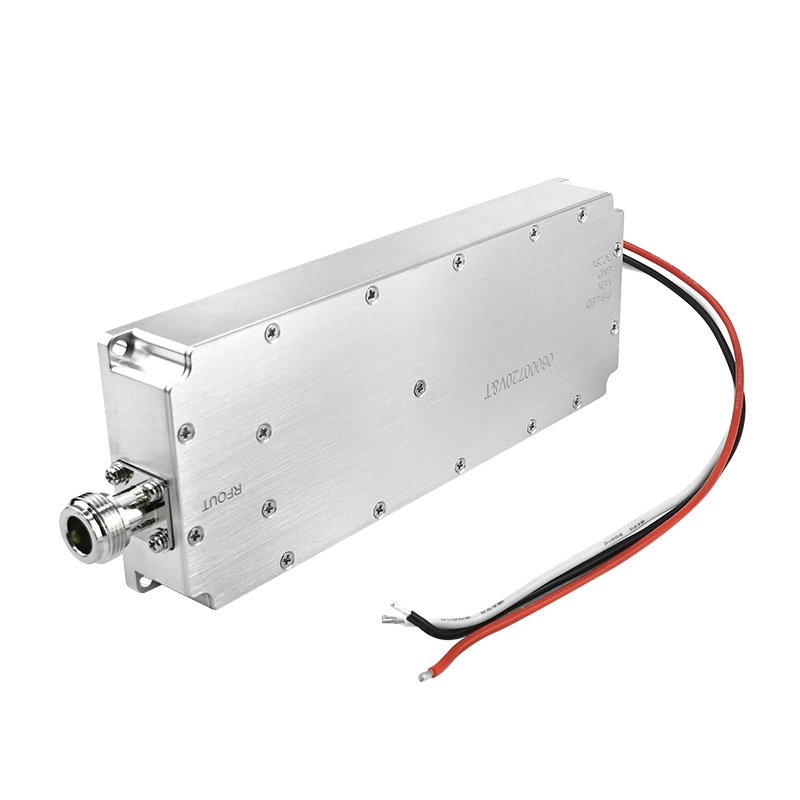

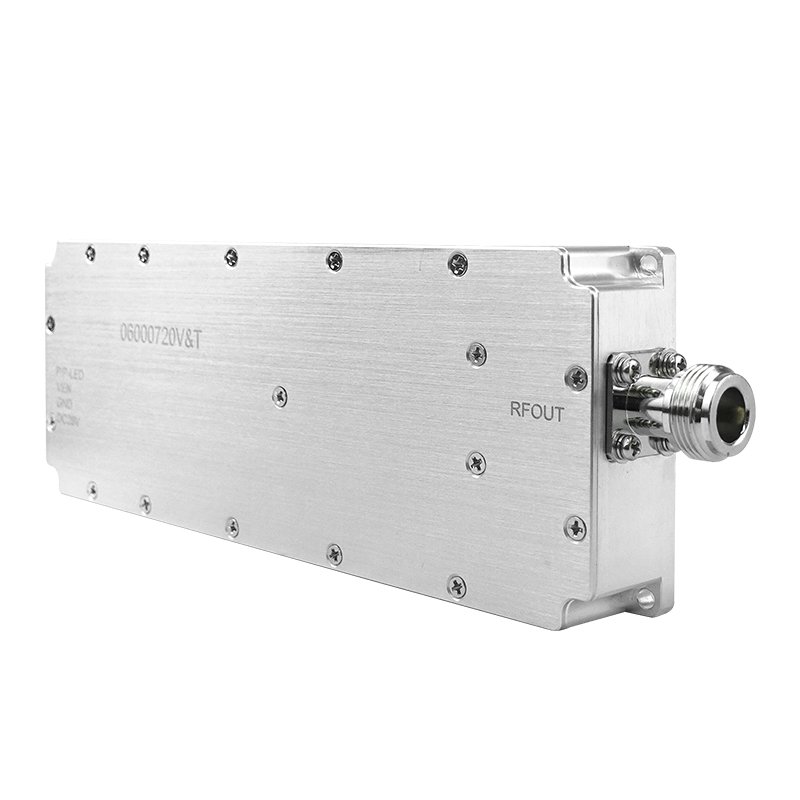

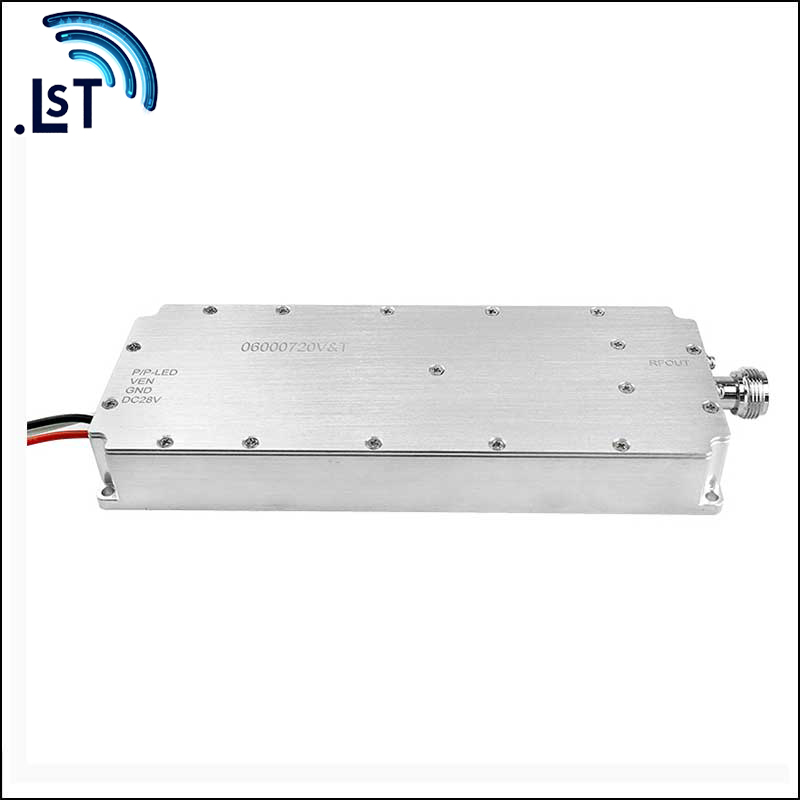

This 100W GaN Digital Source Signal Amplifier Module from LST utilizes advanced Gallium Nitride (GaN) technology to deliver a high-power Continuous Wave (CW) output of up to 100W. It efficiently amplifies digital source signals, making it suitable for various application scenarios demanding high-power RF transmission, such as communications and radar systems.
To ensure stable system operation in complex environments, the module incorporates a comprehensive protection circuit. Drawing on proven protection schemes for GaN devices, it effectively guards against multiple potential risks including overheating, overcurrent, and voltage transients (dV/dt), thereby safeguarding both the amplifier module itself and connected equipment. This significantly enhances the overall system’s reliability and operational lifespan.
LST prioritizes product reliability above all. Our precise manufacturing processes and stringent quality controls ensure that every module delivers consistently excellent performance, which has earned us the long-term trust of customers worldwide.
This module has 100W high power output, It ensure that the signal has sufficient strength during transmission to achieve long-distance transmission and effective coverage, GAN 100W Digital source signal amplifier Module with Circle Protection widely used in wireless communication base stations, satellite communication ground stations and other communication equipment, it can amplify digital source signals to sufficient power.
Product specification
| No. | Item | Data | Unit |
| 1 | Frequency | Customized | MHZ |
| 2 | Test voltage | 24-28 | V |
| 3 | Current | 4 | A |
| 4 | Output | 100 | W |
| 5 | Gain | 50 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Connector | N/Female | |
| 8 | Output connector | N-end | |
| 9 | Material | aluminium | |

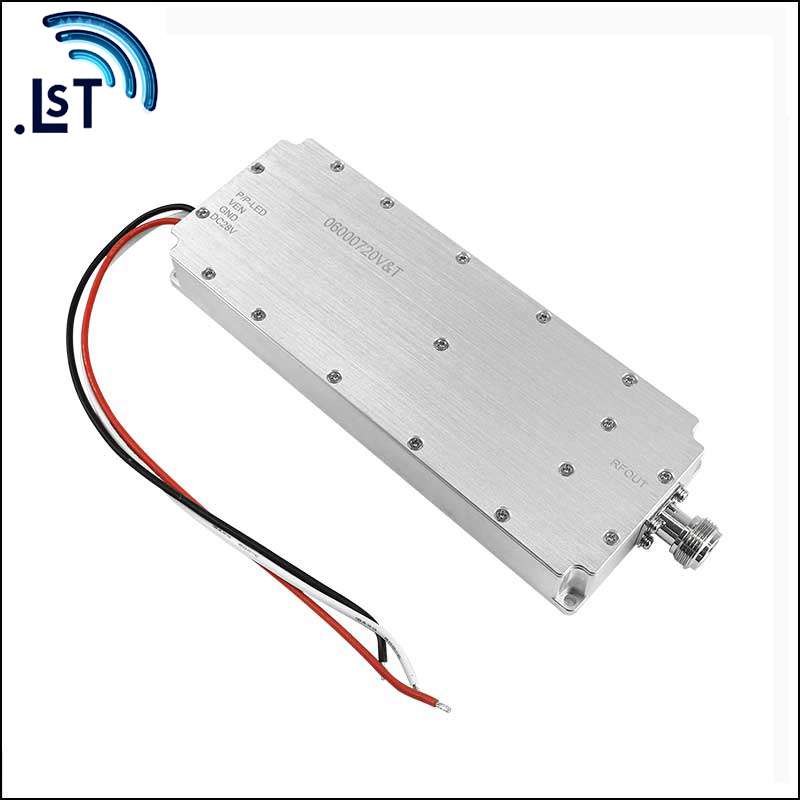

| 10 | Power supply wire | Red+Black+Enable wire | |
| 11 | Enable Control | High ON Low Off | |

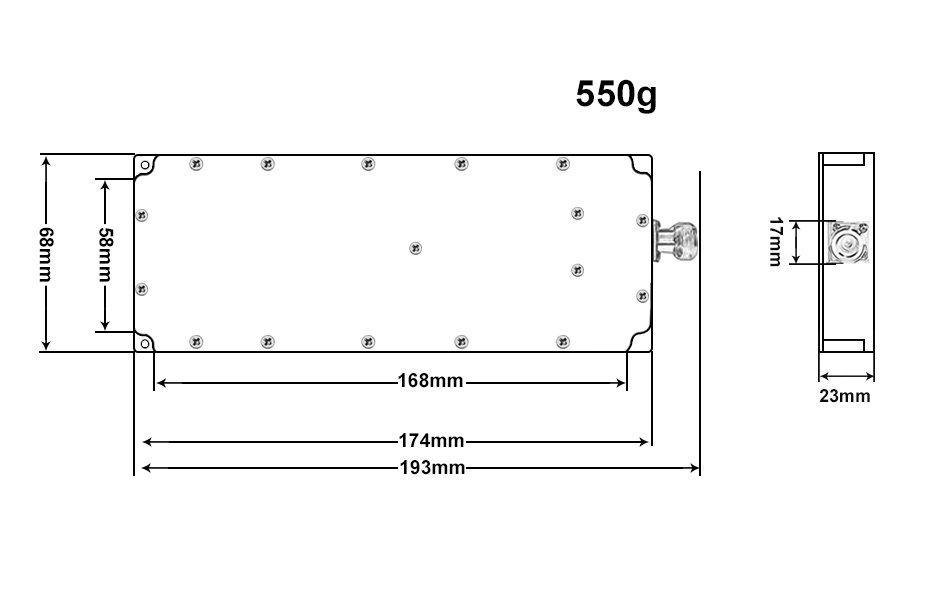

| 12 | Out shell Size | 174*58*23 | mm |
| 13 | Mount hole | 174*68 | mm |
| 14 | Weight | 550 | g |
| 15 | Work Temperature | -40~+65 | ℃ |
| 16 | Out shell material | Aluminum | |
| 17 | Vibration need | Car load OK | |
