Milling Insert – Superhard Material Solutions from Henan, China ../../../index.html Fri, 05 Jun 2026 07:21:49 +0000 en-US hourly 1 https://wordpress.org/?v=7.0.4 ../../../wp-content/uploads/2026/05/cropped-logo-32x32.png Milling Insert – Superhard Material Solutions from Henan, China ../../../index.html 32 32 Indexable Milling Inserts (PCD & PCBN Grades) ../../../products/indexable-milling-inserts-pcd-pcbn-grades/index.html Sat, 23 May 2026 14:32:35 +0000 ../../../index__q3759e786.html Uking Diamond’s indexable milling inserts eliminate premature edge micro-chipping during high-speed interrupted milling cutters tracking:

·  [High-Silicon Aluminum & CFRP Milling]: Premium Full-Face PCD milling grades ensure clean fiber-shearing and zero built-up edge (BUE) in aerospace components.

·  [Hardened Steel & Chilled Iron Face Milling]: High-thermal CBN milling matrices endure violent thermal shock and mechanical impacts in heavy industrial block facing.

Milling Specs

ISO Standard ModelInsert Geometric ProfilePrimary Mechanical ApplicationIndustry Standard Sizes
APKT / APMT Series85° Parallelogram (90° Shoulder)[Square Shoulder Milling & Slotting] True 90-degree shoulder profiling with optimized helical cutting edges. Reduces spindle torque.APKT 1003, APKT 1604, APMT 1135
SEHT / SEET Series45° Square (High-feed facing)[High-Velocity Face Milling] 45-degree lead angle for rapid metal removal rates ($MRR$) and excellent chip thickness control in engine blocks.SEHT 1204AFFN, SEET 1204
LNMU / LNMX SeriesDouble-Sided Tangential (Heavy-duty)[Heavy Roughing & High-Feed Milling] Tangential clamping provides maximum structural mass to absorb volatile interrupted shocks.LNMU 1104, LNMU 1506, LNMX 1004
RDKW / RPMT SeriesRound / Circular (Copy milling)[3D Profile Copying & Die Slotting] Circular edge configuration allows omnidirectional scaling and ramp-down milling in complex mold cavities.RDKW 10T3, RDKW 1204, RPMT 1204

Why Uking Diamond?

·  Solid Edge Structural Integrity: Sintered under severe HPHT configurations to completely prevent diamond layer delamination during rapid cutter entries.

·  Sub-Micron Runout Tracking: Laser-sharpened geometry guarantees tight tolerance alignment, eliminating vibrations across multi-tooth cutter heads.

Features
RME01 Series Features:
milling insert a | UKing Diamond     Not adjustable. It is suitable for rough milling, installing rough milling inserts, fast installation, no adjustment required. High processing efficiency can be obtained.
RME02 Series Features:
milling insert b | UKing Diamond     Wiper is adjustable. It is suitable for fine milling. It can be used in combination with cutting inserts + wiper inserts. Only the wiper inserts can be adjusted to obtain high surface processing quality.
RME03 Series Features:
milling insert c | UKing Diamond      Fully adjustable. It is suitable for semi-finish milling and fine milling. The same cutting insert is installed, and all of them can be adjusted to obtain higher surface processing quality.
Application

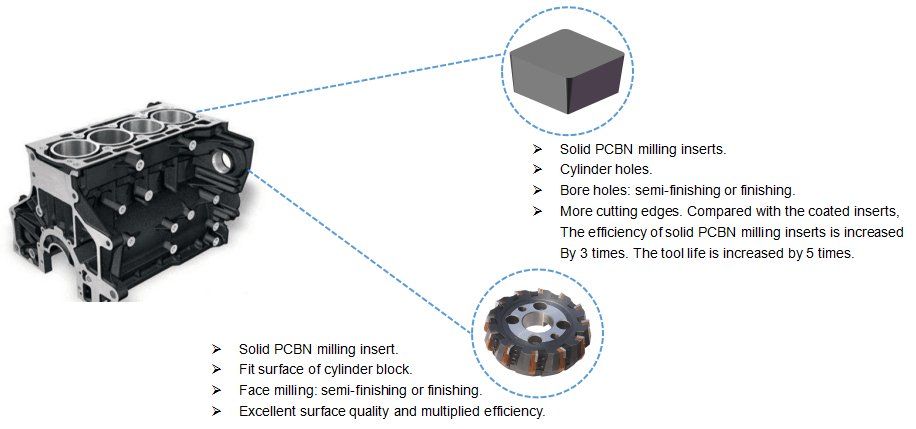

Cast Iron Engine Cylinder Block

milling insert d | UKing Diamond

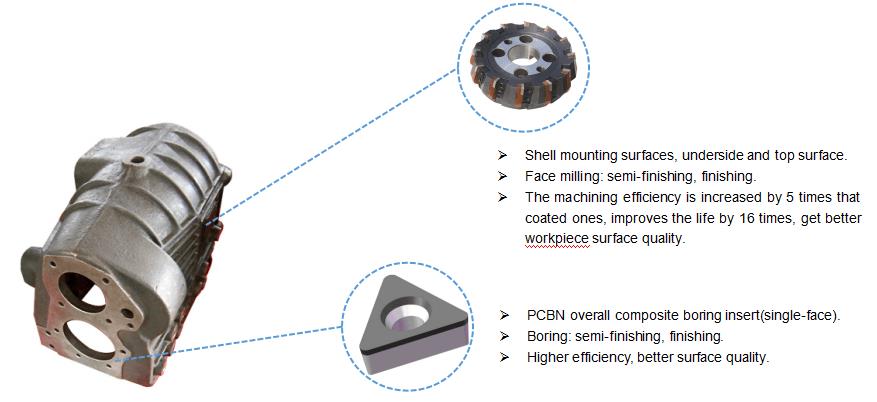

Cast Iron Shell of Gearbox

milling insert e | UKing Diamond
Parameters

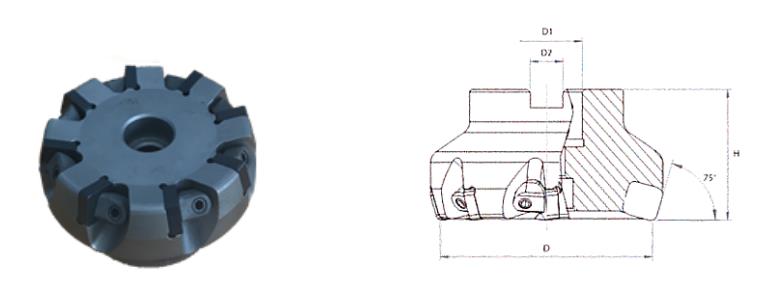

milling insert f | UKing Diamond
ModelSizeTeeth(Z) InsertSpares
DD1D2HClampScrewSpanner
RME01-080-27-SN12-Z802712.450810121620SNFN1204YK-612Dowel M6-20LN-03
RME01-125-40-SN12-Z1254016.463
RME01-160-40-SN12-Z1604016.463
RME01-200-22-SN12-Z2006025.763

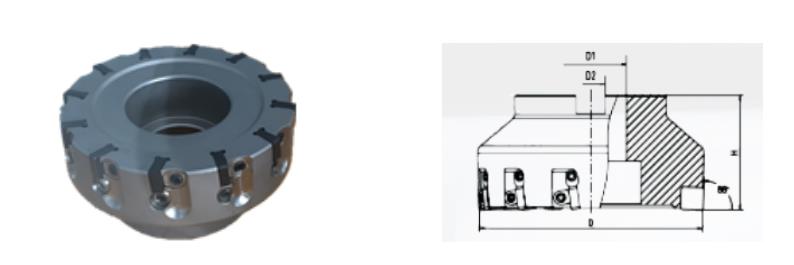

milling insert g | UKing Diamond
ModelSizeTeeth(Z) InsertSpares
DD1D2HClampScrewSpanner
RME03-080-27-SN12-Z802712.450810121620SNFN1204SNFN1204ZZYK-612Dowel M6-20LN-03
RME03-125-40-SN12-Z1254016.463
RME03-160-40-SN12-Z1604016.463
RME03-200-22-SN12-Z2006025.763

Are your high-feed milling lines constantly stopping due to rapid edge chipping, micro-cracking, or sub-optimal surface finish across broad face milling profiles?

 [ Activate Your Milling Validation Pass ] Contact our global tool division today with your required ISO model (e.g., APKT 1604), workpiece material (e.g., Al-Si Castings / Hardened Steel), and current cutting parameters. Evaluate our advanced test batch at factory-direct wholesale pricing—100% of the evaluation cost is fully credited back to your account upon your first bulk commercial order.

]]>
